The TC51 is a very low power, open drain output, CMOS voltage detector with built-in delay. It is particularly well-suited for battery powered applications because of its ex-tremely low 1 µA operating current and small surface-mount packaging. Each part is laser-trimmed to the desired threshold voltage, which can be specified from 1.6V to 6.0V. The standard built-in output delay is 50 msec – 200 msec.The device includes a comparator, low-current high-precision reference, laser-programmed voltage divider, hys-teresis circuit, and output driver with digital delay timer.In operation, the TC51’s output (VOUT) remains in the logic HIGH state as long as VIN is greater than the specified threshold voltage (V – DET). When VIN falls below V – DET, the output is immediately driven to a logic LOW.VOUT remains LOW until VIN rises above V – DET by an amount VHYST, whereupon it returns to a logic HIGH after expiration of the built-in delay time.

Precise Detection Thresholds.....................± 2.0%

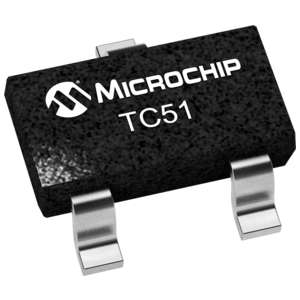

Small Package..............................3-Pin SOT-23A
Low Supply Current......................Typ.1µA
Wide Range Detection....................1.6V to 6.0V
Wide Operating Voltage Range................0.7V to 10V
Built-in Delay Circuit.....................50 msec to 200 msec
Open-Drain Output
