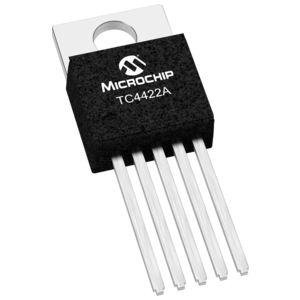

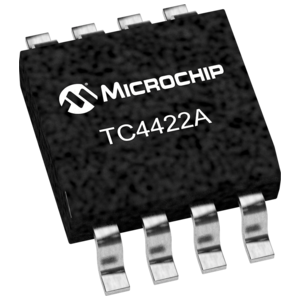

The TC4422A is a high speed, high current, rugged, and efficient MOSFET driver. The TC4422A is an non-inverting driver. This device is intended to improve upon the current TC4422 9A MOSFET driver.

  Latch up Immunity

  Matched Rise and Fall Times

  Input withstands negative swings up to 5V

  High peak Output current of 9A

  High Capacitive Load drive Capability 10nF in 25ns

  Wide Operatig Range 4.5v to 18v

  Low Propagation Delay Times

  Low Output Impedance 800 milliohm

  low supply current (450ua w/ logic 1 input)

  Can Withstand Up to 1.5A of Output Reverse Current

  Reduced shoot through current

  Wide Operating Temperature Range -55 to +125
