The TC1320 is a serially accessible 8-bit voltage output digital-to-analog converter (DAC). The DAC produces an output voltage that ranges from ground to an externally supplied reference voltage. It operates from a single power supply that can range from 2.7V to 5.5V, making it ideal for a wide range of applications. Built into the part is a power-on reset function that ensures that the device starts at a known condition. Communication with the TC1320 is accomplished via a simple 2-wire SMBus/I2C™ compatible serial port with the TC1320 acting as a slave only device. The host can enable the SHDN bit in the CONFIG register to activate the low-power standby mode.

  8-Bit Digital-Analog Converter

  2.7–5.5V Single-Supply Operation

  Simple SMBus/I 2 C Serial Interface

  Low Power - 0.35mA Operation, 0.5µA Shutdown

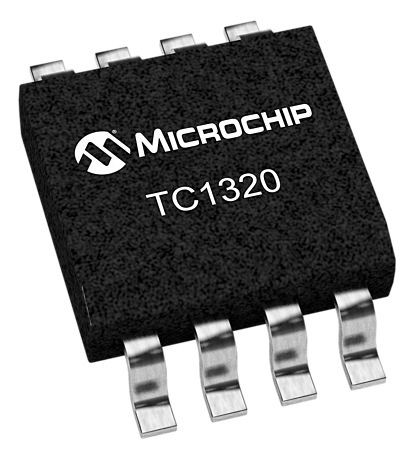

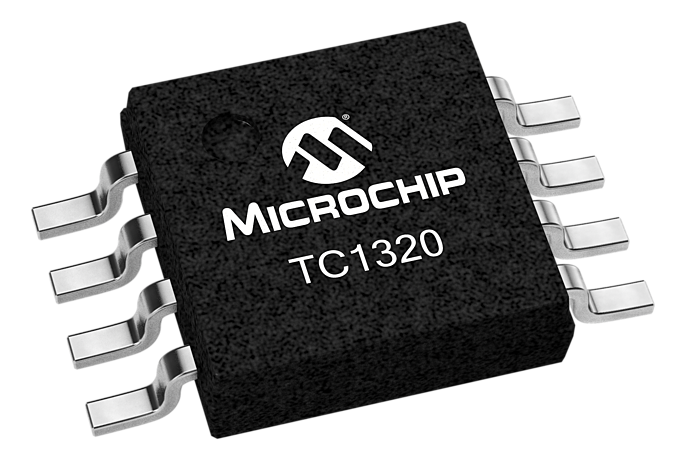

  8-Pin SOIC and 8-Pin MSOP Packages
