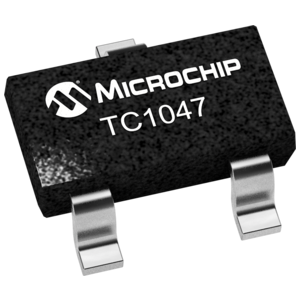

The TC1047 is a linear output temperature sensor whose output voltage is directly proportional to measured temperature. The TC1047 can accurately measure temperature from -40C to +125C. For the TC1047, the output voltage range is typically 100mV at -40C, 500mV at 0C, 750mV at +25C, and 1.75V at +125C. A 10mV/¢XC voltage slope allows for the wide temperature range. The TC1047 is packaged in space saving 3-Pin SOT-23B packages, making them ideal for space critical applications.

  Supply Voltage Range: 2.7V to 4.4V

  Wide Temperature Measurement Range: -40 o C to +125 o C

  High Temperature Converter Accuracy: 2 o C, Max, at 25C

  Linear Temperature Slope ................................... 10mV/°C

  Very Low Supply Current .............................35uA Typical
