The STTH60SW03C uses ST Turbo 2 300 V technology. It is especially suited to be used for DC/DC and DC/AC converters in the secondary stage of MIG/MMA/TIG welding machines.

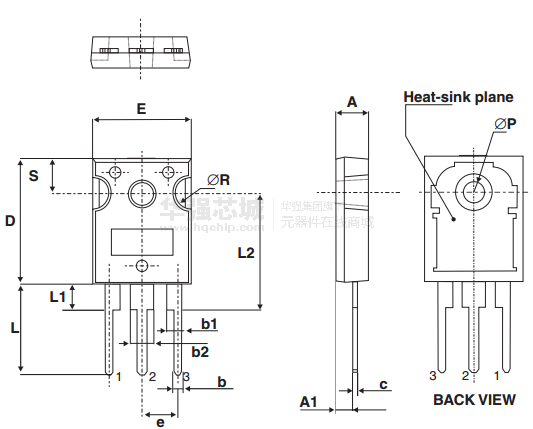

Housed in ST's TO-247, this device offers high power integration for all welding machines and industrial applications.

采用ST的stth60sw03c涡轮增压2 300 V技术。它特别适合用于MIG／MMA／TIG焊机二级DC/DC和DC/AC变换器。

安置在ST的插件式，该装置对所有焊接机和工业应用提供高功率集成。

Key Features

• Ultrafast switching

• Low reverse recovery current

• Reduces switching losses

• Low thermal resistance

• ECOPACK^®2 compliant component

主要特点

超快开关

低的反向恢复电流

降低开关损耗

低热阻

®Ecopack 2兼容的组件
