Dual center tap diode suited for switch mode power supplies and high frequency DC to DC converters.

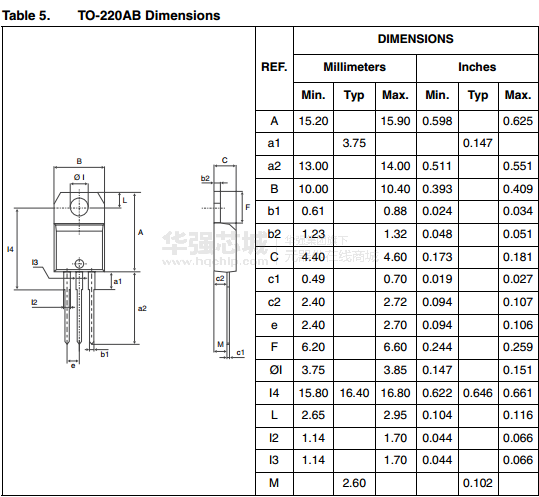

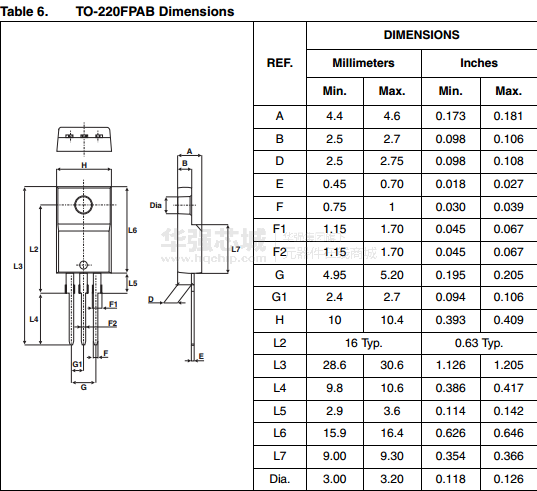

Packaged in TO-220AB and TO-22FPAB, this device is intended for use in low voltage high frequency inverters, free wheeling and polarity protection.

适用于开关电源和高频直流直流转换器双中心抽头二极管。

包装采用TO - 220AB和to-22fpab，这种装置是用于低电压高频逆变器，免费续流和极性保护。

Key Features

• Suited for SMPS

• Low losses

• Low forward and reverse recovery time

• High surge current capability

• High junction temperature

• insulated package: TO-220FPAB

主要特点

适用于开关电源

低损耗

低正向和反向恢复时间

高电流能力

高结温

绝缘包装：TO - 220FPAB
