Dual center tap fast recovery epitaxial diodes suited for switch mode power supply and high frequency DC/DC converters.

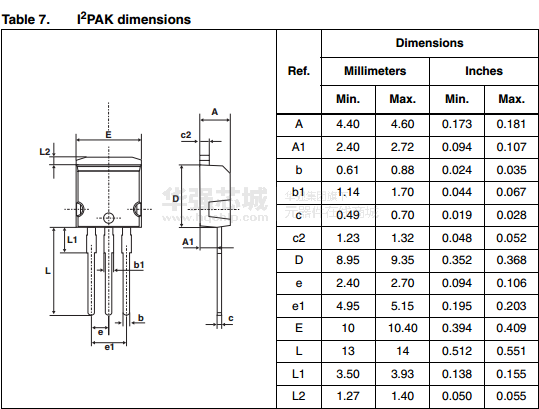

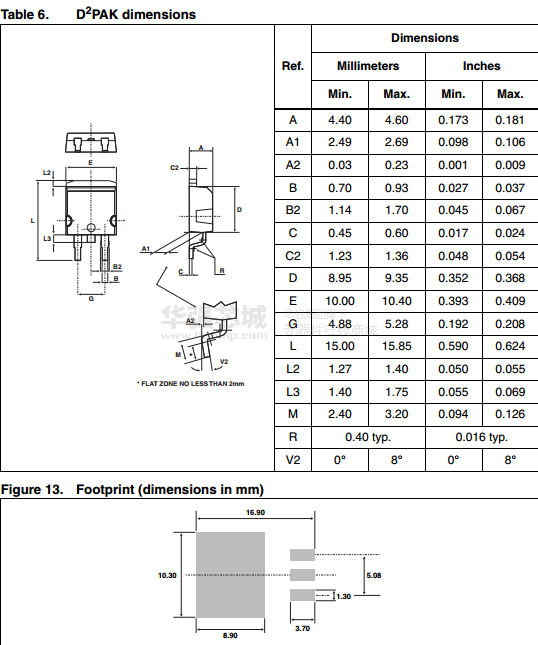

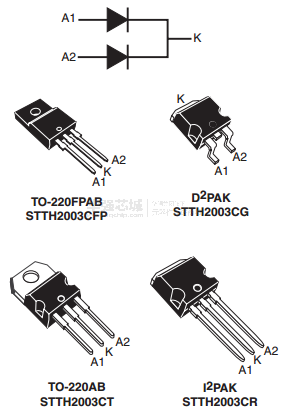

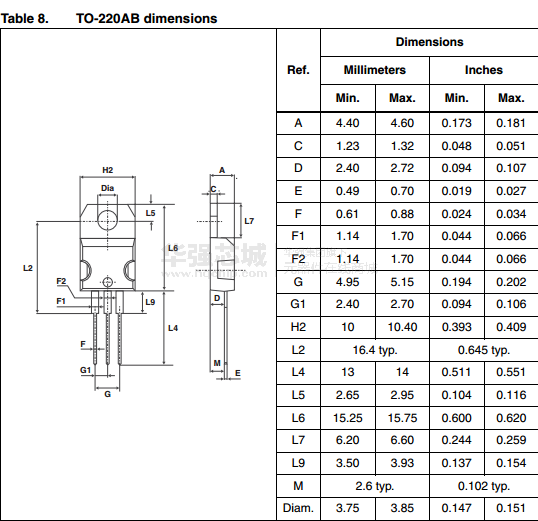

Packaged in TO-220AB, TO-220FPAB, I²PAK or D²PAK, this device is especially intended for secondary rectification.

适用于开关电源和高频直流/直流转换器的双中心抽头快速恢复外延二极管。

包装采用TO - 220AB，TO - 220FPAB，i2pak或D2PAK封装，该器件特别适合次级整流。

Key Features

• Combines highest recovery and reverse voltage performance

• Ultra-fast, soft and noise-free recovery

• Insulated package: TO-220FPAB

• Insulating voltage = 2000 V_RMS sine

• ECOPACK®2 compliant component for D²PAK on demand

主要特点

结合最高的恢复和反向电压性能

超快速，软，无噪音的恢复

绝缘包装：TO - 220FPAB

绝缘电压为2000 Vrms的正弦

®Ecopack 2兼容的组件D²巴基斯坦点播
