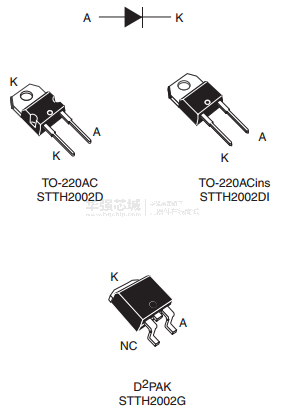

This single rectifier is suited for switch mode power supply and high frequency DC to DC converters. Packaged in D²PAK, TO-220AC and insulated TO-220AC, this device is intended for low voltage, high frequency inverters, free wheeling and polarity protection applications

该单整流器适用于开关电源、高频直流至直流变换器。采用D2PAK封装，to-220ac和绝缘to-220ac，本装置适用于低电压，高频率逆变器，免费续流和极性保护中的应用

Key Features

• Ultrafast switching

• Low reverse current

• Low thermal resistance

• Reduces switching and conduction losses

• High T_j

• Insulating voltage: 2500 V rms

• Capacitance: 7 pF

主要特点

超快切换

低反向电流

低热阻

减少开关和传导损耗

高TJ

绝缘电压：2500伏均方根

电容：7
