The STTH1R04 series uses ST's new 400 V planar Pt doping technology. The STTH1R04 is specially suited for switching mode base drive and transistor circuits.

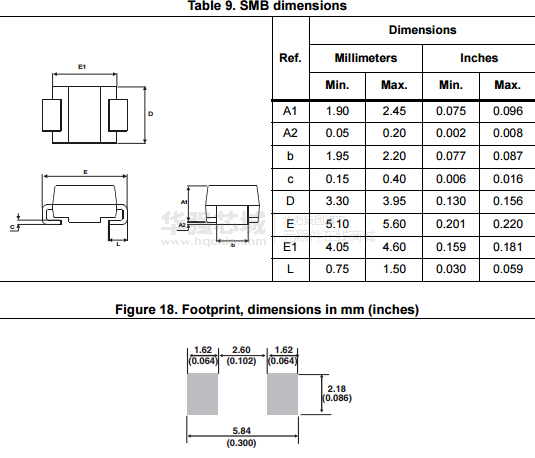

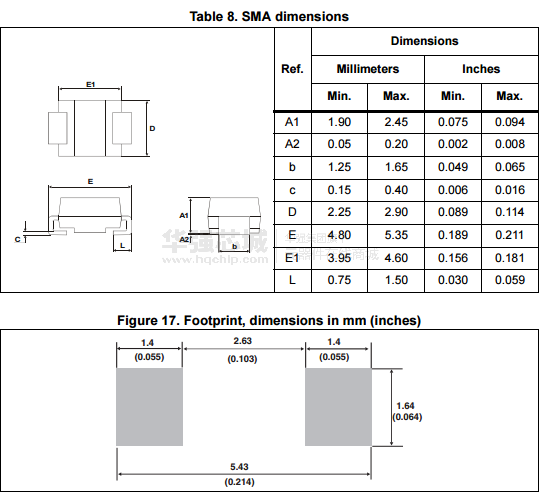

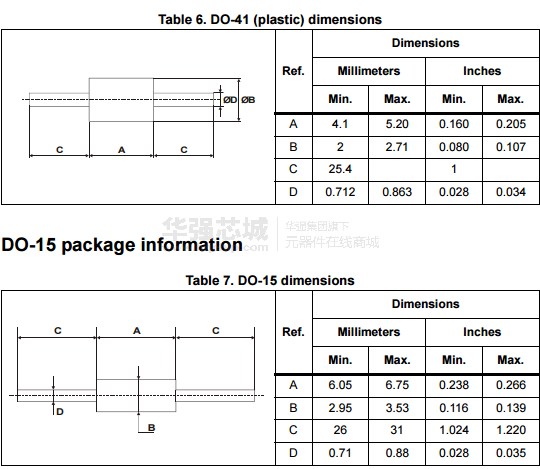

Packaged in axial and surface mount packages, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection.

stth1r04系列采用ST的新的400 V平面Pt掺杂技术。的stth1r04是特别适合于开关基极驱动晶体管电路。

轴向封装和表面贴装封装，这种装置适用于低电压，高频率逆变器，免费续流和极性保护。

Key Features

• Negligible switching losses

• Low forward and reverse recovery times

• High junction temperature

主要特点

可忽略的开关损耗

低正向和反向恢复时间

高结温
