STTH15R06
涡轮2超快高压整流器
制造商:
产品信息
The STTH15R06D/FP, which is using ST Turbo 2 600 V technology, is specially suited as boost diode in continuous mode power factor corrections and hard switching conditions.
The device is also intended for use as a free wheeling diode in power supplies and other power switching applications.
stth15r06d / FP,这是采用ST涡轮2 600 V技术,特别适合作为升压二极管在连续模式功率因数校正和硬开关条件。
该设备还提供了一个续流二极管在电源和其他电源转换应用。
Key Features
Ultrafast switching
Low reverse recovery current
Reduces switching losses
Low thermal resistance
主要特点
超快切换
低反向恢复电流
减少开关损耗
低热阻

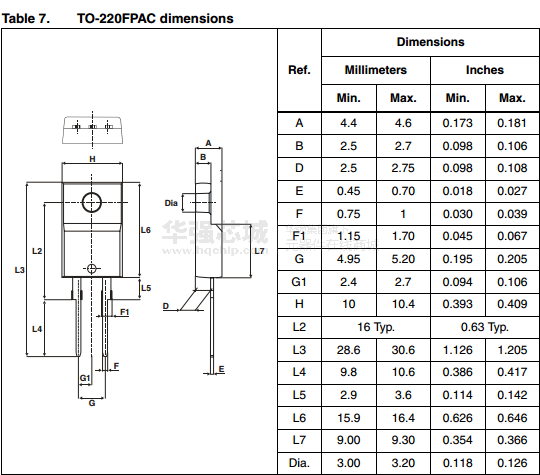

电路图、引脚图和封装图
