STPS5H100-Y

汽车电源肖特基整流器

制造商:

中文资料及数据手册

在线购买

产品信息

This high voltage Schottky barrier rectifier is packaged in DPAK, and designed for high frequency miniature switched mode power supplies such as adaptators and on board DC to DC converters for automotive applications.

这种高电压的肖特基势垒整流器采用DPAK封装,并设计了微型高频开关电源适配器,如船上的直流到直流转换器为汽车应用。

Key Features

  • Negligible switching losses

  • High junction temperature capability

  • Low leakage current

  • Good trade off between leakage current and forward voltage drop

  • Avalanche specification

  • AEC-Q101 qualified

主要特点

可忽略的开关损耗

高结温性能

低漏电流

漏电流和正向压降之间的良好折衷

雪崩规范

AEC-Q101资格


电路图、引脚图和封装图

    STPS5H100-Y电路图

      STPS5H100-Y引脚图

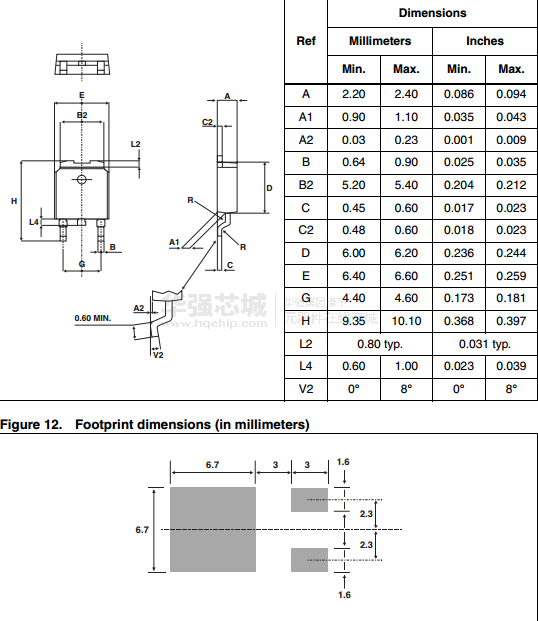

        STPS5H100-Y封装图

        应用案例
