This dual diode Schottky rectifier is suited for high frequency switch mode power supply.

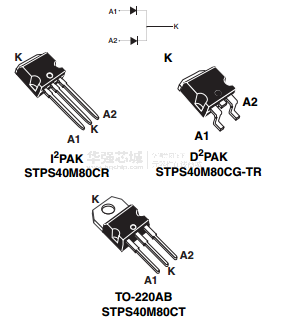

Packaged in TO-220AB, I²PAK and D²PAK, this device is particularly suited for use in notebook, game station, LCD TV and desktop adapters, providing these applications with a good efficiency at both low and high load.

该双二极管肖特基整流器适用于高频开关电源。

包装采用TO - 220AB，i2pak和D2PAK，此设备特别适合用在笔记本电脑、游戏站、液晶电视和台式机适配器，提供这些应用程序具有良好的效率在低和高负荷。

Key Features

• High junction temperature capability

• Optimized trade-off between leakage current and forward voltage drop

• Low leakage current

• Avalanche capability specified

主要特点

高结温性能

漏电流与正向压降的优化折衷

低漏电流

规定的雪崩能力
