This dual diode Schottky rectifier is suited for high frequency switch mode power supply.

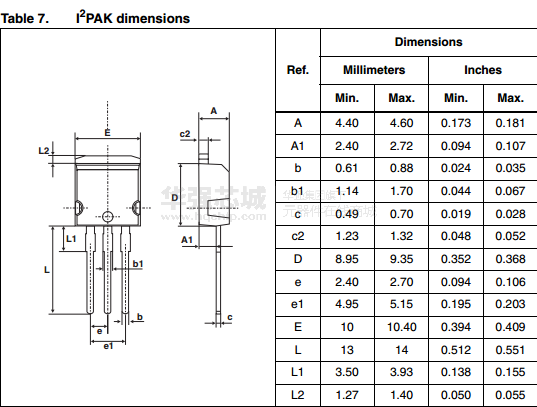

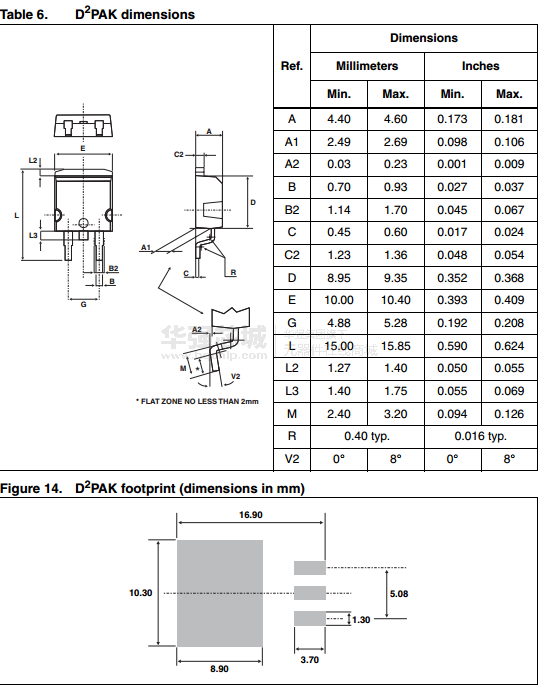

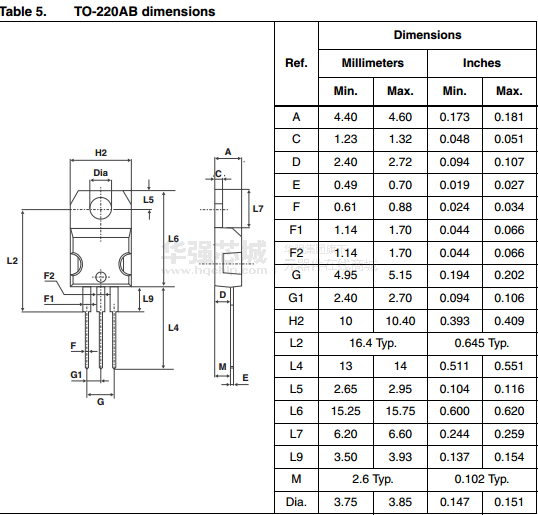

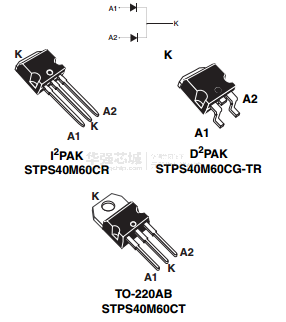

Packaged in TO-220AB, I²PAK and D²PAK, this device is particularly suited for use in notebook, game station and desktop adapters, providing these applications with a good efficiency at both low and high load.

该双二极管肖特基整流器适用于高频开关电源。

包装采用TO - 220AB，i2pak和D2PAK，此设备特别适合用在笔记本电脑、游戏和桌面适配器，提供这些应用程序提供一个良好的效率在低和高负荷。

Key Features

• High current capability

• Avalanche rated

• Low forward voltage drop

• Low leakage current

• High frequency operation

主要特点

高电流能力

雪崩额定

低正向压降

低漏电流

高频运行
