Dual center tap Schottky rectifier suited for switched mode power supplies and high frequency DC to DC converters.

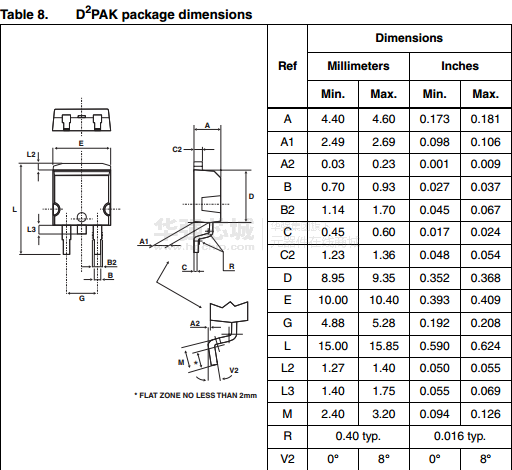

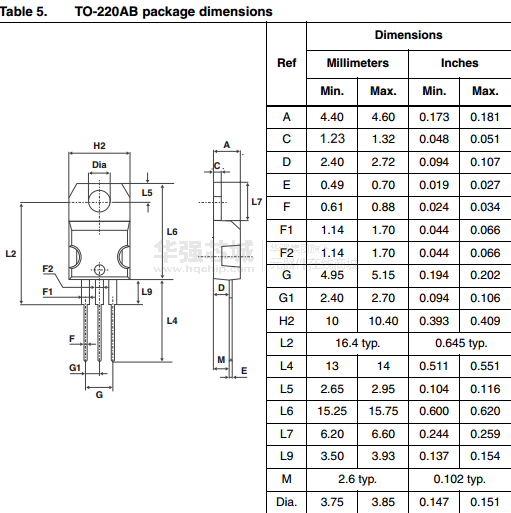

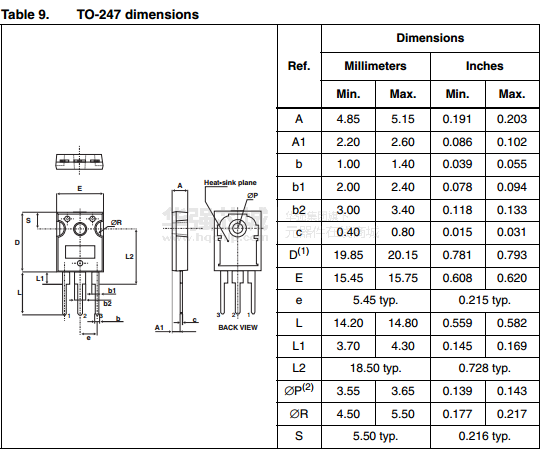

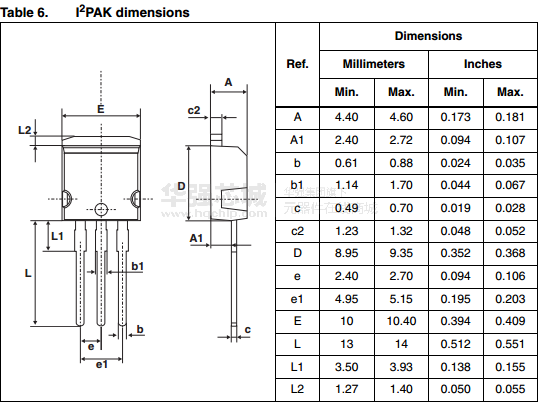

Packaged in TO-247, TO-220AB, TO-220FPAB, D²PAK and I²PAK this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.

双中心抽头肖特基整流器适用于开关电源和高频直流-直流转换器。

封装TO-247、TO - 220AB，TO - 220FPAB，D2PAK封装和i2pak本装置适用于低电压，高频率逆变器，免费续流和极性保护中的应用。

Key Features

• low forward voltage drop meaning very small conduction losses

• low switching losses allowing high frequency operation

• low thermal resistance

• avalanche rated

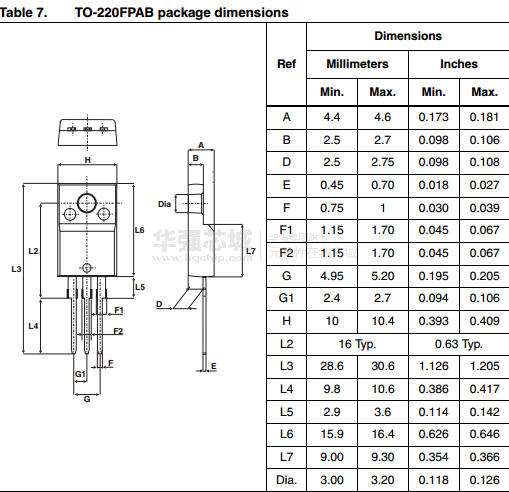

• insulated package TO-220FPAB:

• insulating voltage = 2000 V DC

• capacitance = 45 pF

• avalanche capability specified

主要特点

低正向压降，意思很小的传导损耗

低开关损耗，允许高频操作

低热阻

雪崩额定

绝缘包220FPAB：

绝缘电压为2000伏直流

电容= 45

规定的雪崩能力
