Dual center tap Schottky rectifier designed for high frequency switched mode power supplies.

双中心抽头肖特基整流器设计高频开关电源。

Key Features

• high junction temperature capability

• good trade-off between leakage

• current and forward voltage drop

• low leakage current

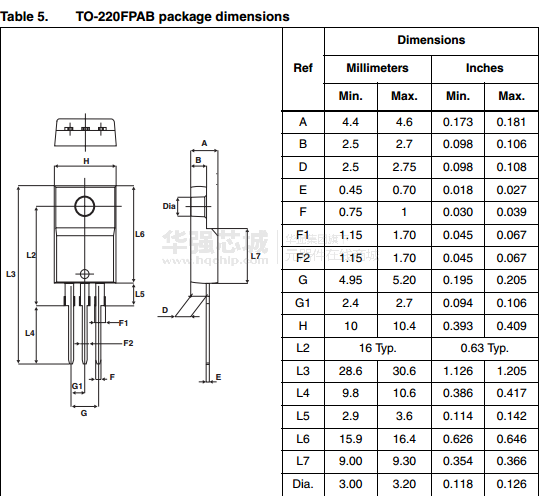

• insulated package: TO-220FPAB

• insulating voltage = 2000 V DC

• capacitance = 45 pF

• avalanche capability specified

主要特点

高结温的能力

良好的平衡之间的泄漏

电流和正向电压降

低漏电流

绝缘包装：TO - 220FPAB

绝缘电压为2000 V直流

电容为45 pF

特定的雪崩能力
