Dual center tap Schottky rectifier suited for high frequency switch mode power supply.

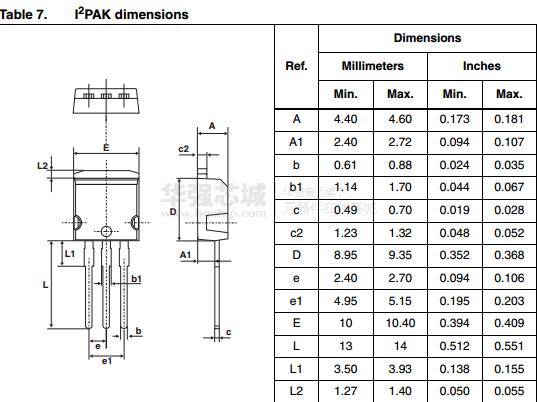

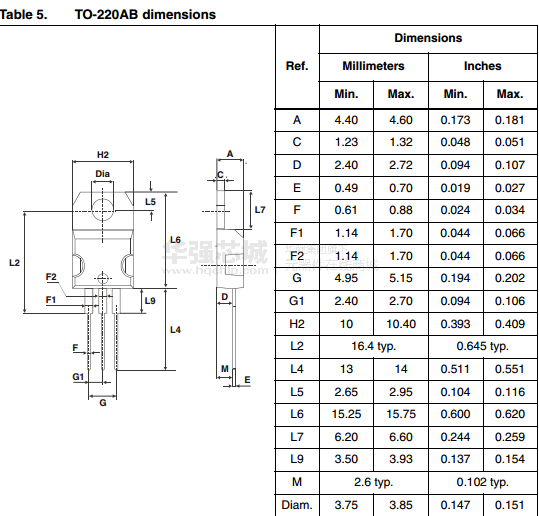

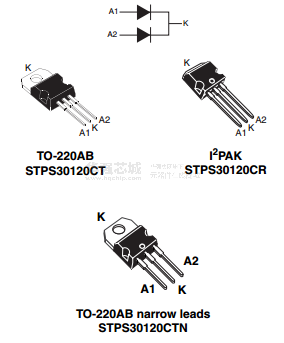

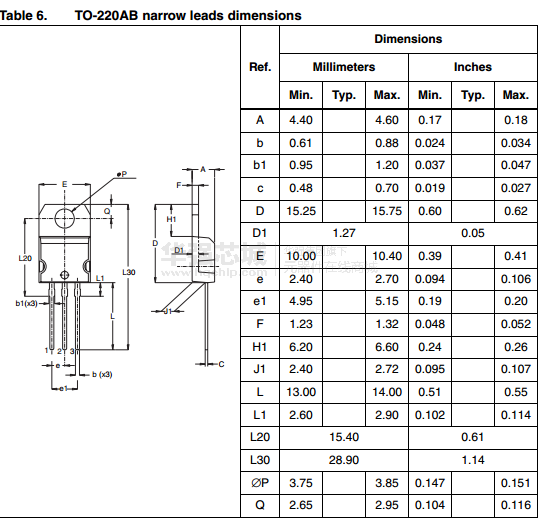

Packaged in TO-220AB, TO-220AB narrow leads, and I²PAK, this device is intended to be used in notebook and LCD adaptors, desktop SMPS, providing in these applications a margin between the remaining voltages applied on the diode and the voltage capability of the diode.

适用于高频开关电源的双中心抽头肖特基整流器。

包装采用TO - 220AB，TO - 220AB窄的线索，和i2pak，这个装置是用来在笔记本电脑和液晶显示器的适配器，台式机电源，提供这些应用中的剩余电压的二极管和二极管电压的能力之间的差距。

Key Features

• High junction temperature capability

• Avalanche rated

• Low leakage current

• Good trade-off between leakage current and forward voltage drop

主要特点

高结温的能力

额定雪崩

低漏电流

漏电流和正向压降之间的良好折衷
