This device is a 200 V Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters.

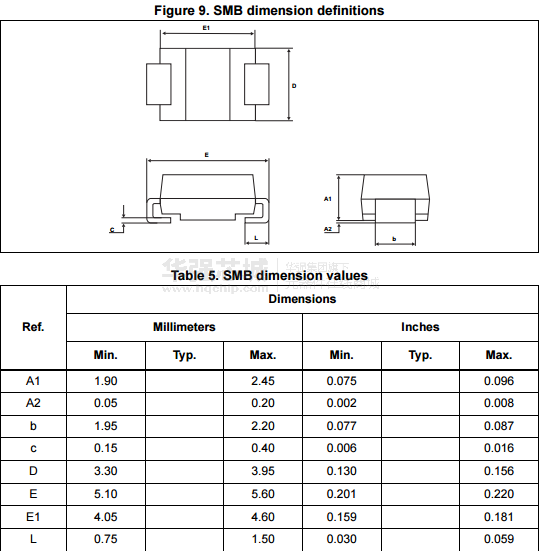

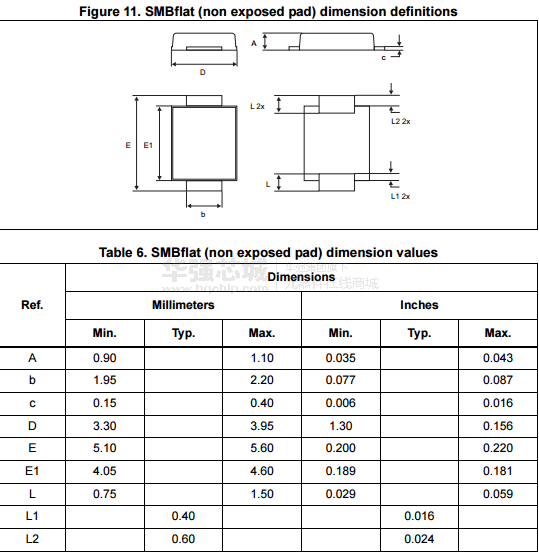

Packaged in SMB, SMBflat, this device is especially intended for use in low voltage, high frequency inverters, freewheeling and polarity protection. Also ideal for all LED lighting applications.

该器件是一个200伏的肖特基整流器适用于开关电源和高频直流到直流转换器。

包装在SMB，smbflat，该装置特别适用于低电压，高频率逆变器，续流和极性保护。也适合所有发光二极管照明应用。

Key Features

• Low forward voltage drop

• Very small conduction losses

• Negligible switching losses

• Extremely fast switching

• Low thermal resistance

• -40°C minimum operating T_j

• ECOPACK^®2 compliant component

主要特点

低正向压降

很小的传导损耗

可忽略的开关损耗

极快速切换

低热阻

40°C最小操作TJ

®Ecopack 2兼容的组件
