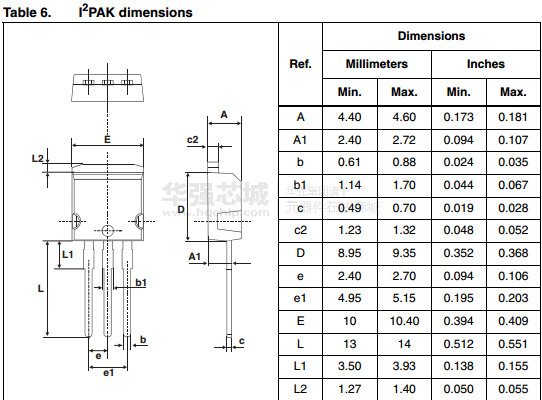

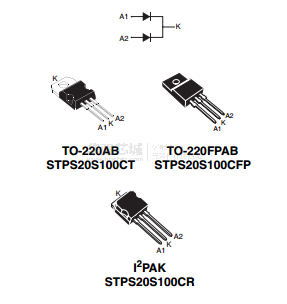

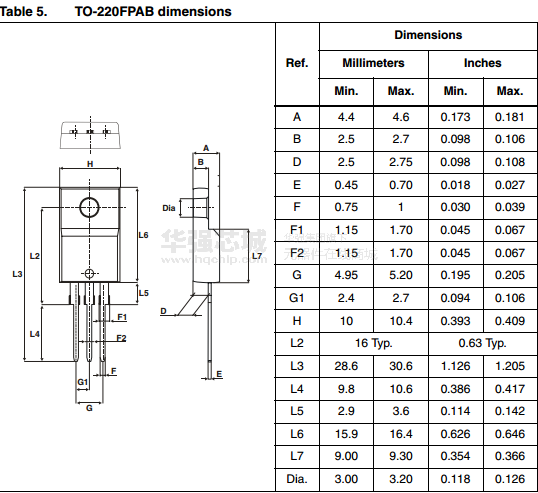

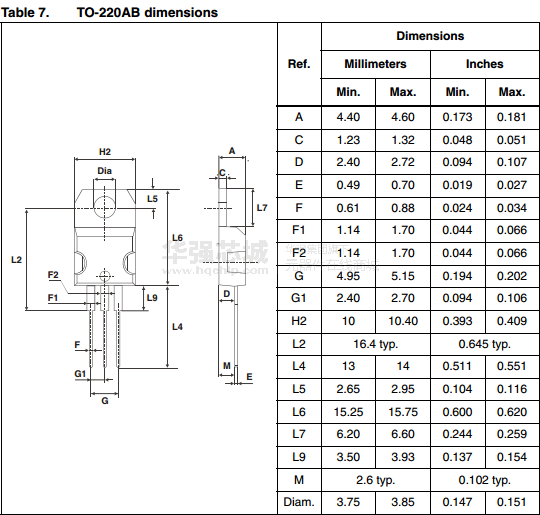

Schottky barrier rectifier designed for high frequency miniature switched mode power supplies such as adaptators and on board dc/dc converters. The device is packaged in TO-220AB, I²PAK and TO-220FPAB.

肖特基整流器设计的微型高频开关电源适配器，如船上的直流/直流转换器。该装置是在包装采用TO - 220AB，i2pak和TO - 220FPAB。

Key Features

• High junction temperature capability for converters located in confined enrironment

• Low leakage current at high temperature

• Low static and dynamic losses as a result of the Schottky barrier

• Avalanche specification

主要特点

转换器位于承压高结温能力环境

高温低漏电流

由于肖特基势垒低的静态和动态损失

雪崩规范
