Dual center tap Schottky rectifier designed for high frequency switch mode power supply.

用于高频开关电源的双中心抽头肖特基整流器。

Key Features

• High junction temperature capability

• Good trade off between leakage current and forward voltage drop

• Low leakage current

• Avalanche capability specified

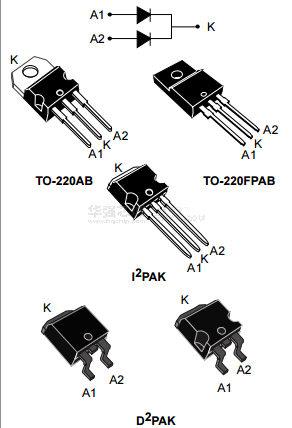

• Insulated package: TO-220FPAB

• Insulating voltage = 2000 V_RMS sine

• ECOPACK^®2 compliant component for D²PAK on demand

主要特点

高结温性能

漏电流和正向压降之间的良好折衷

低漏电流

规定的雪崩能力

绝缘包装：TO - 220FPAB

绝缘电压为2000 Vrms的正弦

®Ecopack 2兼容的组件D²巴基斯坦点播
