Single chip Schottky rectifier suited for Switch Mode Power Supply and high frequency DC to DC converters.

This device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.

用于开关电源和高频直流至直流转换器的单片肖特基整流器。

本装置适用于低电压，高频率逆变器，免费续流和极性保护中的应用。

Key Features

• Very small conduction losses

• Negligible switching losses

• Extremely fast switching

• Low forward voltage drop

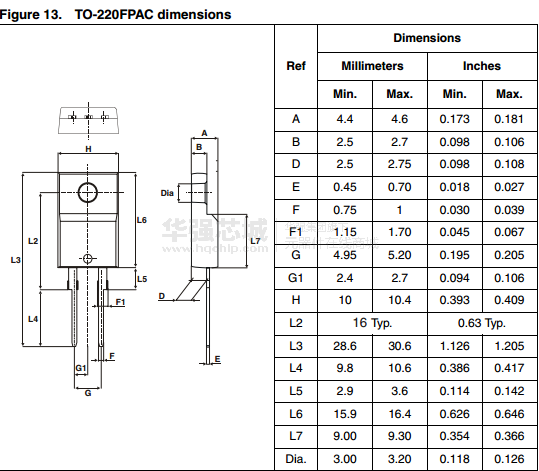

• Insulated package: TO-220FPAC

  Insulating voltage = 2000V DCCapacitance = 12pF

主要特点

很小的传导损耗

可忽略的开关损耗

极快速切换

低正向压降

绝缘包装：to-220fpacinsulating电压为2000V dccapacitance = 12pf
