SST25WF080B is a member of the Serial Flash 25 Series family and feature a four-wire, SPI-compatible interface that allows for a low pin-count package which occupies less board space and ultimately lowers total system costs. SPI serial flash memory is manufactured with proprietary, high-performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches.

This Serial Flash significantly improve performance and reliability, while lowering power consumption. The device writes (Program or Erase) with a single power supply of 1.65-1.95V. The total energy consumed is a function of the applied voltage, current, and time of application. Since for any given voltage range, the SuperFlash technology uses less current to program and has a shorter erase time, the total energy consumed during any Erase or Program operation is less than alternative flash memory technologies.

  Single Voltage Read and Write Operations - 1.65-1.95V

  Serial Interface Architecture - SPI Compatible: Mode 0 and Mode 3

  High Speed Clock Frequency up to 40MHz

  Dual Input/Output Support   - Fast-Read Dual-Output Instruction (3BH)   - Fast-Read Dual I/O Instruction (BBH)

  Superior Reliability   - Endurance: 100,000 Cycles   - Greater than 20 years Data Retention

  Ultra-Low Power Consumption:   - Active Read Current: 4 mA (typical)   - Standby Current: 10 μA (typical)   - Power-down Mode Standby Current: 4 μA (typical)

  Flexible Erase Capability   - Uniform 4 KByte sectors   - Uniform 64 KByte overlay blocks

  Page Program Mode up to 256 Bytes/Page

  Fast Erase and Page-Program:   - Chip-Erase Time: 500 ms (typical)   - Sector-Erase Time: 40 ms (typical)   - Block-Erase Time: 80 ms (typical)   - Page-Program Time: 0.8 ms/ 256 bytes (typical)

  End-of-Write Detection with Software polling the BUSY bit in Status Register

  Hold Pin (HOLD#) to Suspend a serial sequence without deselecting the device

  Write Protection Pin (WP#) - Enables/Disables the Lock-Down function of the status register

  Software Write Protection- Write protection through Block-Protection bits in status register

  Temperature Range: -40°C to +85°C

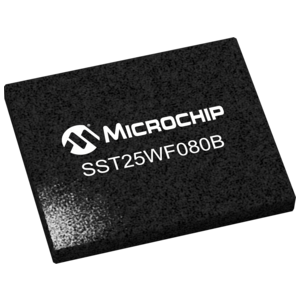

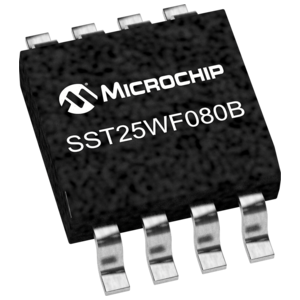

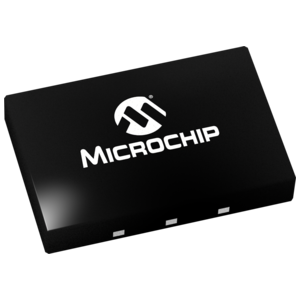

  Packages Available   - 8-lead SOIC (150 mils)   - 8-contact USON (2mm x 3mm)

  All devices are RoHS compliant
