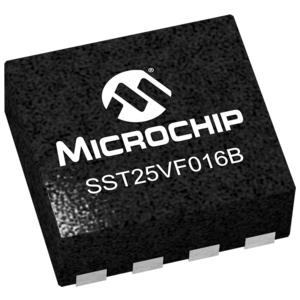

SST's 25 series Serial Flash family features a four-wire, SPI-compatible interface that allows for a low pin-count package which occupies less board space and ultimately lowers total system costs. The SST25VF016B devices are enhanced with improved operating frequency which lowers power consumption. SST25VF016B SPI serial flash memories are manufactured with SST's proprietary, high-performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches.

For EOL Notification, click .
For Migration Document to , click .

Single Voltage Read and Write Operations– 2.7-3.6V

   Serial Interface Architecture– SPI Compatible: Mode 0 and Mode 3

   High Speed Clock Frequency– Up to 80 MHz

   Superior Reliability– Endurance: 100,000 Cycles (typical)– Greater than 100 years Data Retention

   Low Power Consumption:– Active Read Current: 10 mA (typical)– Standby Current: 5 µA (typical)

   Flexible Erase Capability– Uniform 4 KByte sectors– Uniform 32 KByte overlay blocks– Uniform 64 KByte overlay blocks

   Fast Erase and Byte-Program:– Chip-Erase Time: 35 ms (typical)– Sector-/Block-Erase Time: 18 ms (typical)– Byte-Program Time: 7 µs (typical)

   Auto Address Increment (AAI) Programming– Decrease total chip programming time overByte-Program operations

   End-of-Write Detection– Software polling the BUSY bit in Status Register– Busy Status readout on SO pin in AAI Mode

   Hold Pin (HOLD#)– Suspends a serial sequence to the memorywithout deselecting the device

   Write Protection (WP#)– Enables/Disables the Lock-Down function of thestatus register

   Software Write Protection– Write protection through Block-Protection bits instatus register

   Temperature Range– Commercial: 0°C to +70°C– Industrial: -40°C to +85°C

   Packages Available– 8-lead SOIC (200 mils)– 8-contact WSON (6mm x 5mm)

   All non-Pb (lead-free) devices are RoHS compliant
