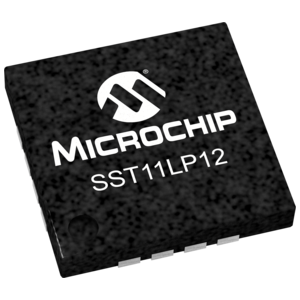

The SST11LP12 is a high-power, high-gain power amplifier based on the highly-reliable InGaP/GaAs HBT technology. It is configured for high-power, high-efficiency applications with superb power-added efficiency while operating over the entire 802.11a frequency band for U.S., European, and Japanese markets (4.9-5.8 GHz).The power amplifier IC features easy board-level usage along with high-speed power-up/down control and is offered in a 16-contact WQFN package.

   High gain

   High linear output power:– Meets 802.11a OFDM Spectrum Mask requirements up to 24 dBm over the entire band– Added EVM

   High power-added efficiency/Low operating current for 6 Mbps 802.11a applications– ~17% @ POUT = 23 dBm for 6 Mbps

   Simple input/output matchingApplications:

   WLAN (IEEE 802.11a/n)

   Japan WLAN

   HyperLAN2

   Multimedia
