SPIRIT1

低数据速率,低功耗收发器子1GHz

制造商:

中文资料及数据手册

在线购买

产品信息

The SPIRIT1 is a very low-power RF transceiver, intended for RF wireless applications in the sub-1 GHz band. It is designed to operate both in the license-free ISM and SRD frequency bands at 169, 315, 433, 868, and 915 MHz, but can also be programmed to operate at other additional frequencies in the 300-348 MHz, 387-470 MHz, and 779-956 MHz bands. The air data rate is programmable from 1 to 500 kbps, and the SPIRIT1 can be used in systems with channel spacing of 12.5/25 kHz, complying with the EN 300 220 standard. It uses a very small number of discrete external components and integrates a configurable baseband modem, which supports data management, modulation, and demodulation. The data management handles the data in the proprietary fully programmable packet format also allows the M-Bus standard compliance format (all performance classes).

However, the SPIRIT1 can perform cyclic redundancy checks on the data as well as FEC encoding/decoding on the packets. The SPIRIT1 provides an optional automatic acknowledgement, retransmission, and timeout protocol engine in order to reduce overall system costs by handling all the high-speed link layer operations.

Moreover, the SPIRIT1 supports an embedded CSMA/CA engine. An AES 128-bit encryption co-processor is available for secure data transfer. The SPIRIT1 fully supports antenna diversity with an integrated antenna switching control algorithm. The SPIRIT1 supports different modulation schemes: 2-FSK, GFSK, OOK, ASK, and MSK. Transmitted/received data bytes are buffered in two different three-level FIFOs (TX FIFO and RX FIFO), accessible via the SPI interface for host processing.

spirit1是一个非常低功耗RF收发器,用于1 GHz频段的射频无线应用。它被设计为工作在无需许可的ISM和SRD频带在169,315,433,868,和915兆赫,但也可以被编程为在300-348 MHz频率运行,其他387-470兆赫,和779-956兆赫波段。空气数据率可从1到500 kbps,而spirit1可用于与12.5/25千赫信道间隔的系统,符合EN 300标准220。它使用了一个非常小的数量的离散的外部元件,并集成了一个可配置的基带调制解调器,它支持数据管理,调制和解调。数据管理处理数据的专有的完全可编程的数据包格式还允许M-Bus标准格式(所有性能等级)。

然而,这spirit1可以执行循环冗余校验的数据以及FEC编码/解码的数据包。的spirit1提供一个可选的自动确认、重传超时协议引擎,并以处理所有的高速链路层操作,降低整体系统成本。

此外,该spirit1支持嵌入式CSMA/CA机。AES 128位加密协处理器可用于安全的数据传输。的spirit1完全支持一个集成天线开关控制算法的天线分集。spirit1支持不同的调制方案的性能,GFSK,OOK,问,和MSK。发送/接收的数据字节缓冲在两个不同的三级FIFO(TX FIFO和Rx FIFO),可通过SPI接口的主机处理。

Key Features

  • Frequency bands: 150-174 MHz, 300-348 MHz, 387-470 MHz, 779-956 MHz

  • Modulation schemes: 2-FSK, GFSK, MSK, GMSK, OOK, and ASK

  • Air data rate from 1 to 500 kbps

  • Very low power consumption (9 mA RX and 21 mA TX at +11 dBm)

  • Programmable RX digital filter from 1 kHz to 800 kHz

  • Programmable channel spacing (12.5 kHz min.)

  • Excellent performance of receiver sensitivity (-118 dBm), selectivity, and blocking

  • Programmable output power up to +16 dBm

  • Fast startup and frequency synthesizer settling time (6 μs)

  • Frequency offset compensation

  • Integrated temperature sensor

  • Battery indicator and low battery detector

  • RX and TX FIFO buffer (96 bytes each)

  • Configurability via SPI interface

  • Automatic acknowledgment, retransmission, and timeout protocol engine

  • AES 128-bit encryption co-processor

  • Antenna diversity algorithm

  • Fully integrated ultra low power RC oscillator

  • Wake-up on internal timer and wake-up on external event

  • Flexible packet length with dynamic payload length

  • Sync word detection

  • Address check

  • Automatic CRC handling

  • FEC with interleaving

  • Digital RSSI output

  • Programmable carrier sense (CS) indicator

  • Automatic clear channel assessment (CCA) before transmitting (for listen-before-talk systems). Embedded CSMA/CA protocol

  • Programmable preamble quality indicator (PQI)

  • Whitening and de-whitening of data

  • Wireless M-BUS, EN 300 220, FCC CFR47 15 (15.205, 15.209, 15.231, 15.247, 15.249), and ARIB STD T-67, T93, T-108 compliant

  • QFN20 4x4 mm RoHS package

  • Operating temperature range from -40 °C to 105 °C

主要特点

频段:150-174兆赫,300-348兆赫,387-470兆赫,779-956兆赫

调制方案:性能,GFSK,MSK,GMSK,OOK,问

从1到500 kbps的数据率的空气

非常低的功耗(在11 dBm的9毫安21毫安的RX和TX)

可编程接收数字滤波器从1千赫到800千赫

可编程通道间距(12.5千赫分钟)

优良的接收机灵敏度性能(118 dBm),选择性阻断

可编程的输出功率为16 dBm

快速启动和频率合成器的稳定时间(6μs

频偏补偿

集成温度传感器

电池指示和低电量检测器

RX和TX FIFO缓冲区(96字节)

通过SPI接口配置

自动确认,重传,超时协议引擎

AES 128位加密协处理器

天线分集算法

完全集成的超低功率钢筋混凝土振荡器

唤醒内部定时器和外部事件唤醒

具有动态负载长度的柔性数据包长度

同步字检测

地址检查

自动结直肠癌

FEC和交织

数字RSSI输出

可编程载波检测指标

自动清除信道评估(CCA)之前发送(比如说之前听系统)。嵌入式CSMA/CA协议

可编程序质量指标(PQI)

数据的白化与去白化

无线M-Bus,EN 300,220,15(15.205,FCC cfr47 15.209,15.231,15.247,15.249),和ARIB性病t-67,T93,t-108兼容

qfn20 4x4毫米RoHS封装

工作温度范围从- 40°到105°


电路图、引脚图和封装图

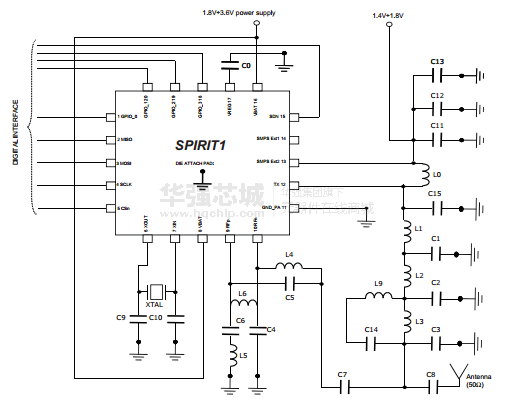

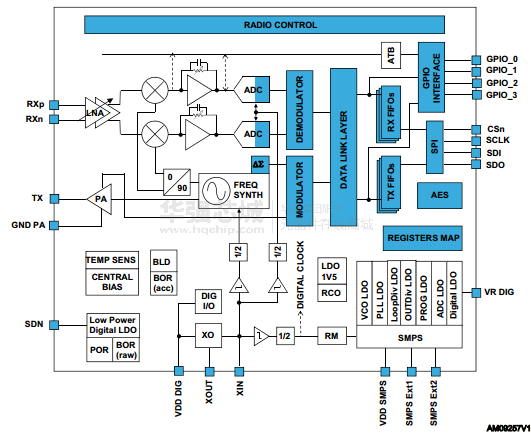

    SPIRIT1电路图

      SPIRIT1引脚图

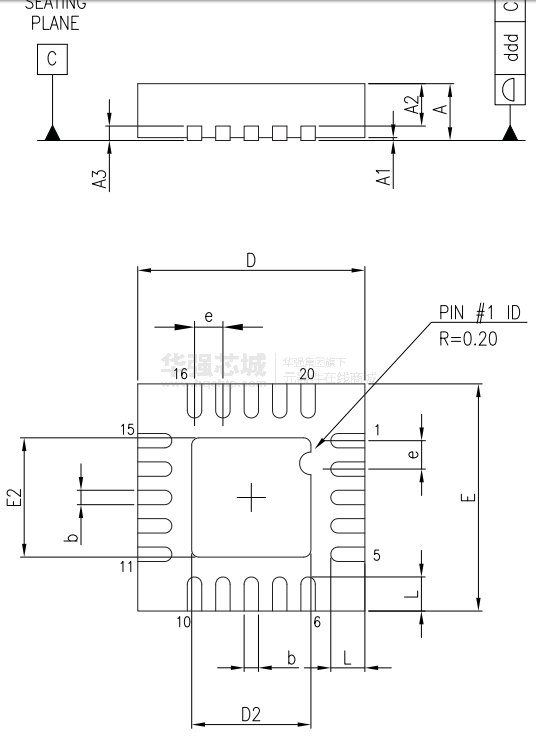

        SPIRIT1封装图
