Important Note:

Firmware version 1.33 is the latest production firmware version available for the RN4020.  To receive the latest firmware version 1.33, please order part number .

RN4020-V/RM123 – FW v1.23 Not recommended for new designs, please consider the .

RN4020-V/RM120 – FW v1.20 Not recommended for new designs, please consider the .

RN4020-V/RM – FW v1.10 Not recommended for new designs, please consider the .

For more information about firmware version 1.33, please see the .

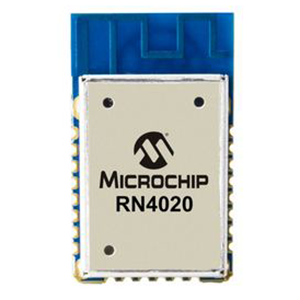

The RN4020 is a fully-certified, Bluetooth Version 4.1 low energy module for designers who want to easily add low power wireless capability to their products.  The small form factor, surface mount module has the complete Bluetooth stack on-board and is controlled via simple ASCII commands over the UART interface.  The RN4020 also includes all Bluetooth SIG profiles, as well as MLDP (Microchip Low-energy Data Profile) for custom data.  Developers can utilize the scripting feature to enable standalone operation without a host MCU or Processor.  The RN4020 can be remote controlled by another module over a secure connection and can be updated via the UART interface or over-the-air.

The RN4020 has a built-in high performance PCB antenna optimally tuned for long range, typically over 100 meters.  The compact size, 11.5 x 19.5 x 2.5mm, enables ease of integration in size-constrained applications.  The RN4020 can be used with any low cost microcontroller for intelligent Bluetooth Low Energy applications.  The RN4020 is fully-certified, has the complete Bluetooth stack on-board the module, and is controlled via a simple ASCII UART interface, making it a true drop-in solution that is easy to use, and easy to prototype, greatly speeding time to market.



Available iOS Applications for the RN4020:


Microchip’s Smart Discover for iPhone or iPad provides the ability to scan and connect to nearby Microchip Bluetooth Low Energy (BLE) peripherals, listen to BLE broadcasters and more.


Microchip’s Smart Data provides the ability to scan, connect and exchange data between an iPhone or iPad and the RN4020 with Microchip’s Low Energy Data Profile (MLDP).

Android source code is available for the RN4020.  Contact yourto request free source code.

For the latest firmware details and corresponding part numbers, please visit:

  Fully-certified Bluetooth® version 4.1 module

  On-board embedded Bluetooth low energy stack

  Simple ASCII command interface over UART

  Multiple IOs for control and status

  Secure AES128 encryption

  GAP,GATT,SM, L2CAP and integrated public profiles

  Create custom services using command API

  Data streaming with Microchip's Low Energy Data Profile (MLDP)

  Scripting for standalone module operation with analog and digital data collection

  7 dBm transit power for 100m+ range

  Field-upgradeable via the UART interface or over-the-air

  Software configurable role as peripheral or central, client or server

  Compact form factor 11.5 x 19.5 x 2.5mm

  Low power modes

  UART interface, GPIO, ADC

  64KB internal serial flash

  Castellated SMT pads for easy and reliable PCB mounting

  Environmentally friendly, RoHS compliant

  Certifications: FCC, IC, CE, QDID
