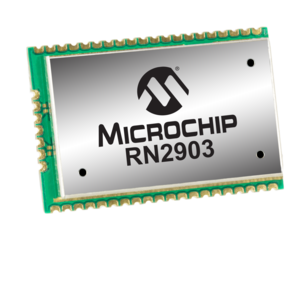

RN2903

Sub-GHz 915 MHz long range LoRa Module

制造商:

产品信息

The RN2903 is a fully-certified 915 MHz module based on wireless LoRa® technology.  The RN2903 utilizes a unique spread spectrum modulation within the Sub-GHz band to enable long range, low power, and high network capacity.

The module's embedded LoRaWAN™ Class A protocol enables seamless connectivity to any LoRaWAN compliant network infrastructure, whether public or privately deployed.  The module is specifically designed for ease of use, which shortens development time and speeds time to market.  LoRa technology is ideal for battery-operated sensors and low power applications such as IoT, M2M, Smart City, Sensor networks, Industrial automation, and more.

  On-board LoRaWAN™ Class A protocol stack

  ASCII command interface over UART

  Compact form factor 17.8 x 26.7 x 3 mm

  Castellated SMT pads for easy and reliable PCB mounting

  Device Firmware Upgrade (DFU) over UART

  14 GPIO for control, status, and ADC

  Highly integrated module with MCU, crystal, EUI-64 Node Identity Serial EEPROM, Radio transceiver with analog front end, and matching circuitry

  Environmentally friendly, RoHS compliant

  FCC and IC Certified

    RN2903封装图
