RE46C180

RE46C180 is a CMOS Programmable Ion Smoke Detector ASIC with Interconnect,Timer Mode,Alarm Mem

制造商:Microchip

中文资料及数据手册

在线购买

产品信息

The RE46C180 is a next generation low power programmable CMOS ionization type smoke detector IC. With minimal external components this circuit will provide all the required features for an ionization type smoke detector.An on-chip oscillator strobes power to the smoke detection circuitry for 5ms every 10 seconds to keep standby current to a minimum.A check for a low battery condition is performed every 80 seconds and ionization chamber test is performed once every 320 seconds when in standby. The temporal horn pattern supports the NFPA 72 emergency evacuation signal.An interconnect pin allows multiple detectors to be connected such that when one unit alarms all units will sound. A charge dump feature will quickly discharge the interconnect line when exiting a local alarm. The interconnect input is also digitally filtered.An internal 9 minute or 80s timer can be used for a reduced sensitivity mode.A local alarm memory feature allows the user to determine if the unit has previously entered a local alarm condition.Utilizing low power CMOS technology the RE46C180 is designed for use in smoke detectors that comply with Underwriters Laboratory Specification UL217 and UL268.

  6 -12V Operation

  Low Quiescent Current Consumption

  +/- 0.75pA Detect Input Current

  Guard Outputs for Ion Detector Input

  Programmable Standby Sensitivity

  Programmable Hush Sensitivity

  Programmable Hysteresis

  Programmable Chamber Voltage for Push-to-Test

  Low Battery Set Point

  Local Alarm Memory

  Auto Alarm Locate

  Horn Synchronization

  9 Minute or 80 Second Hush Timer

  Temporal or Continuous Horn Pattern

  Interconnect up to 40 Detectors

  IO Filter and Charge Dump

  10-Year End-of-Life Indication

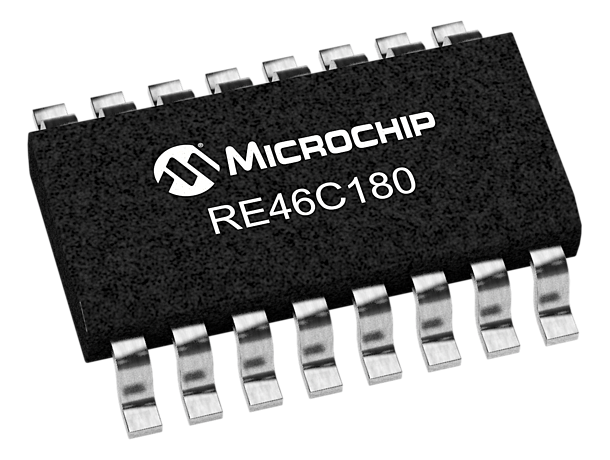

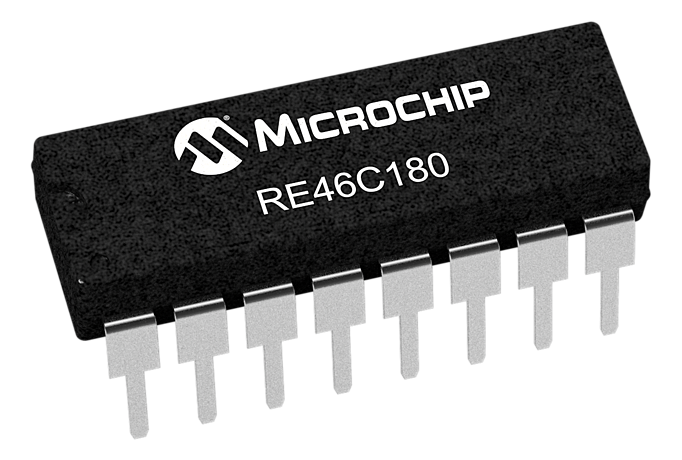

    RE46C180封装图
