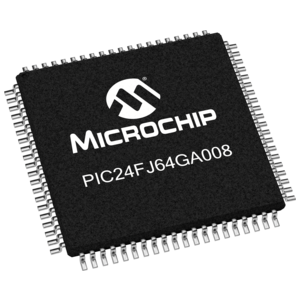

PIC24 16-bit Microcontroller, 64 KB Flash Memory, 8 KB RAM, and Advanced Peripherals, 80 Pin Package

CPU

   Up to 16 MIPS performance

   16 x 16 Hardware Multiply, Single Cycle Execution

   32-bit x 16-bit Hardware Divider

   C Compiler Optimized Instruction Set

System

   Internal oscillator support - 31 kHz to 8 MHz, up to 32 MHz with 4X PLL

   On-chip LDO Voltage Regulator

   JTAG Boundary Scan and Flash Memory Program Support

   Fail-Safe Clock Monitor – allows safe shutdown if clock fails

   Watchdog Timer with separate RC oscillator

nanoWatt Power Managed Modes

   Run, Idle and Sleep modes

   Multiple, Switchable Clock Modes for Optimum Performance and Power Management

Analog Features

   10-bit ADC, 16 channels, 500k samples per second

   Two Analog comparators

Peripherals

   2 UART Modules with LIN and IrDA support, 4 Deep FIFO

   2 SPI ™ Modules with8 Deep FIFO

   2 I2C™ Modules with Master and Slave Modes

   Five 16-bit Timer Modules

   Up to 5 Input Capture and 5 Output Compare / PWM

   Hardware RTCC, Real-Time Clock Calendar with Alarms

   PMP, Parallel Master Port, with 16 Address Lines, and 8/16-bit Data
