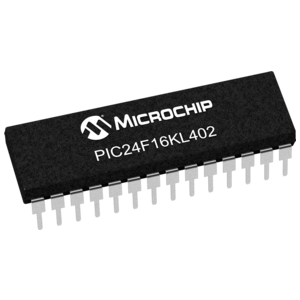

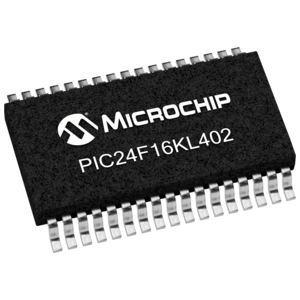

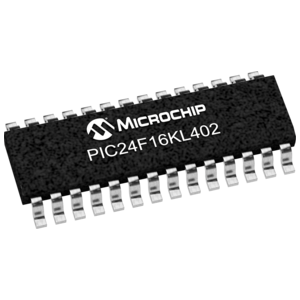

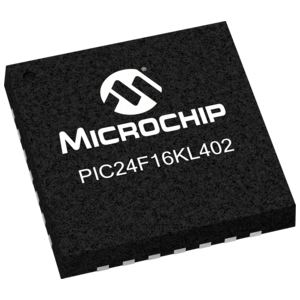

Low Cost PIC24F 16-bit Microcontroller featuring nanoWatt XLP for eXtreme Low Power consumption. Includes PIC18 peripherals such as MSSP (I2C/SPI) and CCP/ECCP for flexibility and lower cost. Ideal for cost sensitive applications requiring 16 MIPS performance.

Typical nanoWatt XLP specifications include:

  Sleep mode currents as low as 30nA at 25C

  Run mode currents under 350uA/MHz)

  Idle mode currents under 80uA/MHz at 1.8V

  Watchdog timer as low as 210nA at 25C

  512 Bytes of Data EEPROM

CPU:

  Up to 16 MIPS performance

  Single Cycle Instruction Execution

  16 x 16 Hardware Multiply, & 32-bit x 16-bit Hardware Divider

  C Compiler Optimized Instruction Set System

Peripherals:

  10-bit ADC, up to 12 - channel, 500k samples per ssecond

  Two Analog rail-to-rail comparators Peripherals

  2 UART Modules with LIN and IrDA support

  2 Master Synchronous Serial Port modules (MSSPs) with Two modes of operation : SPI/ I2C™

  One Enhanced CCP module (ECCP)and Two CCP modules
