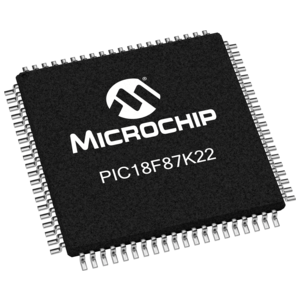

Featuring nanoWatt XLP Technology, this 8-bit microcontroller is well suited for power-constrained and battery-powered applications. The Charge Time Measurement Unit (CTMU) simplifies the design of capacitive touch applications and can enable other applications requiring precise time and/or temperature measurement. Robust features such as wide operating voltage and temperature ranges and high endurance flash program and data EEPROM make this an excellent microcontroller for rugged automotive and industrial applications.Additional peripherals, such as a 12-bit A/D converter, 3 comparators H/W RTCC, 10 total CCP/ECCP channels, 11 total timers and 69 general purpose I/O, give this cost-effective microcontroller seemingly limitless possibilities in a variety of applications where high performance with low cost is required.

Low Power Features

  nanoWatt XLP technology for low sleep, RTCC, LCD and WDT currents

  Low-Power BOR

  Ultra Low-Power Wake-Up

  Fast Wake-Up

  Low Input Leakage Currents

CPU

  Up to 16 MIPS Performance

  Operating Speed up to 64 MHz

  Operating Voltage Range: 1.8 to 5.5V

  8 X 8 Single-Cycle Hardware Multiplier

  Three Internal Oscillators: 31 kHz, 500 kHz, 16 MHz

Peripherals

  Charge Time Measurement Unit for mTouch Sensing

  A/D Converter

  12-bit Resolution

  24 Channels

  Ten CCP/ECCP Modules

  Eleven 8/16-bit Timer/Counter Modules

  Three Analog Comparators

  Hardware Real-Time Clock and Calendar (RTCC)

  Two Master Synchronous Serial Port Modules
