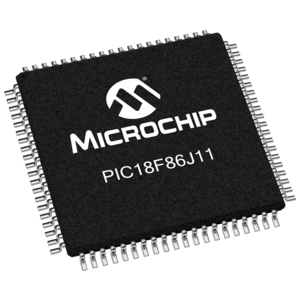

Ideal for 3V applications that are cost senstitive, requiring flexible serial communication with four serial ports: double synchronous serial ports (I²C™ and SPI™) and double asynchronous serial ports. Large amounts of Flash program memory make it ideal for instrumentation panels, TCP/IP enabled embedded applications as well as metering, industrial control and monitoring applications. The PIC18F86J11 is an enhancement to the PIC18F86J10 family, including an internal 8MHz oscillator, lower power and improved EEPROM emulation via word Flash write capabilities.

  48 MHz and 12 MIPS at 3V

  Flash 10,000 endurance, 20 years retention

  2.0 - 3.6V voltage range

  5V tolerant digital inputs

  Enhanced ICD with 3 HW breakpoints

  Internal 8MHz oscillator

  nanoWatt technology

  Parallel Master Port (PMP)
