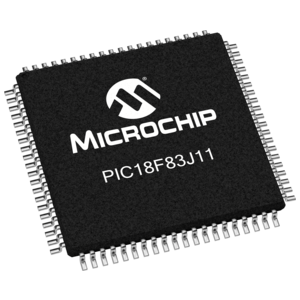

General Purpose PIC18 J-series Microcontroller providing 10 MIPS performance at 3V with 8MHz internal oscillator and lower sleep power than the 18F87J10 family. These devices are easily adapted for cost sensitive application such as data loggers, control panels, home security, car alarms, and seat controllers.

CPU

  Up to 10 MIPS Performance at 3V

  C compiler optimized RISC architecture

  8x8 Single Cycle Hardware Multiply

System

  Internal oscillator support-31 kHz to 8MHz

  Fail-Safe Clock Monitor- allows safe shutdown if clock fails

  Watchdog Timer with separate RC oscillator

  Voltage range; 2.0V to 3.6V

nanoWatt Power Managed Modes

  Run, Idle and SLEEP modes

Analog Features

  10-bit ADC, 12 channels, 100K samples per second

  Low Voltage Detection Module

  Brown-out-Reset Module

  Two Analog Comparators

Peripherals

  Master Synchronous Serial Port supports SPI™ and I2C™ master and slave mode

  EUSART module including LIN bus support

  Four Timer modules

  Two Capture Compare PWM modules

   Parallel Slave Port
