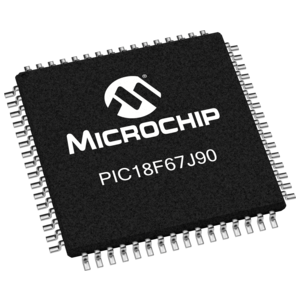

LCD PIC18F Microcontroller with 128KB of Flash, 4KB of RAM, and 64 pin package. These devices are ideal for handheld meters, thermostats, home security, portable medical devices and utility metering products.

CPU

  Up to 12 MIPS Performance

  C compiler optimized RISC architecture

  8x8 Single Cycle Hardware Multiply

  Internal oscillator support-31 kHz to 8MHz

  Voltage range; 2.0V to 3.6V

LCD Module

  An integrated LCD driver module, capable of driving 48 segments and 4 commons forLCD display (132 pixels)

  Integrated LCD Voltage Boost Regulator

nanoWatt Power Managed Modes

  Run, Idle and down to 0.1uA SLEEP modes

Analog Features

  12-bit ADC, 12 channels, 100K samples per second

  Low Voltage Detection Module

  Brown-out-Reset Module

  Two Analog Comparators

Other Peripherals

  Master Synchronous Serial Port supports SPI™ and I2C™ master and slave mode

  EUSART module including LIN bus support

  Four Timer Modules

  Two CCP

  Real-Time Clock Calendard

  Charge Time Measurement Unit (CTMU) for capacitive touch
