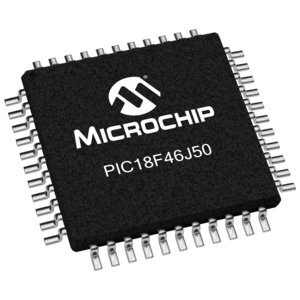

This low power and high performance 8-bit MCU with integrated full-speed USB 2.0 and peripheral flexibility comes in a small package for cost sensitive applications in the PIC18 J-series. New features include Deep sleep mode for low power applications, Peripheral Pin Select for design flexibility for mapping peripherals to I/O pins and a CTMU module for easy capacitive touch user interfaces. The PIC18F46J50 family is ideal for applications requiring cost-effective, low-power USB solutions with a robust peripheral set in a small package.

Featuring nanoWatt XLP™ Technology ideal for battery applicationsTypical nanoWatt XLP™ specifications include:

  15nA Deep Sleep mode (Watch Webinar)

  60nA Sleep mode (RAM retention)

  830nA Real Time Clock & Calendar operation in Sleep modes

  780nA Watch Dog Timer operation in Sleep modes

Other Features:

   Integrated full speed USB 2.0

   Deep Sleep mode ideal for battery applications

   Peripheral Pin Select for mapping digital peripherals to various I/O for design flexibility

   Hardware RTCC provides clock, calendar & alarm functions

   Charge Time Measurement Unit (CTMU) supports capacitive touch screens

   2 Enhanced Capture / Compare / PWM modules

   2 MSSP serial ports for SPI or I2C™ communication

   2 Enhanced USART modules

   8-bit Parallel port

   Dual analog comparators

   13 ch, 10-bit ADC

   Self programming Flash supports 10k erase/write cycles & 20 years retention

   Operating voltage 2.0 - 3.6V, 5.5V tolerant digital inputs
