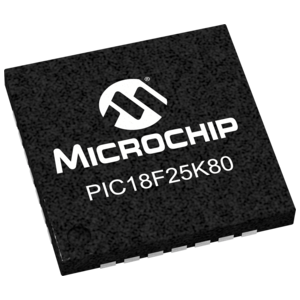

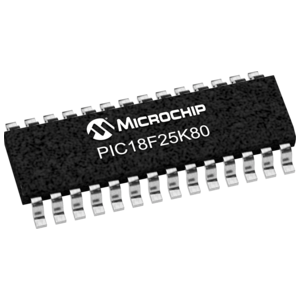

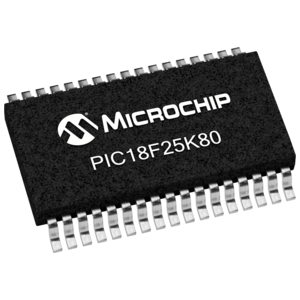

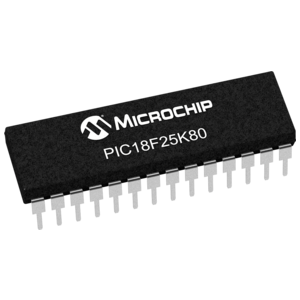

PIC18F25K80 is a high performance 8-bit MCU with Integrated ECAN™ featuring eXtreme Low Power consumption. New features in PIC18F25K80 include low sleep current for low power application, 1.8V to 5.5V operating voltage for automotive, building control, elevator control and industrial application, Timers/Enhanced Compare/Capture/PWMs for precision timing control, 12-bit ADC for advance analog interface and Charge Time Measurement Unit for easy capacitive touch user interface. The PIC18F25K80 family is ideal for applications requiring cost-effective, low-power CAN solutions with high performance and robust peripheral set in small package

Featuring nanoWatt XLP Technology ideal for battery applications

  20 nA Sleep mode (Watch Webinar)

  300nA Watch Dog Timer operation in Sleep modes

  Integrated ECAN™ conforming to CAN 2.0B active specification

  Extreme Low Power Sleep mode ideal for battery applications

  Operating voltage 1.8V – 5.5V

  Charge Time Measurement Unit (CTMU) supports Touch sensing and advanced sensingapplications

  8 ch, 12-bit ADC

  4 Capture / Compare / PWM modules and 1 Enhanced Capture / Compare / PWM modules

  1 MSSP serial ports for SPI or I2C™ communication

  2 Enhanced USART modules

  Two analog comparators

  Self programming Flash supports 10k erase/write cycles & 20 years retention
