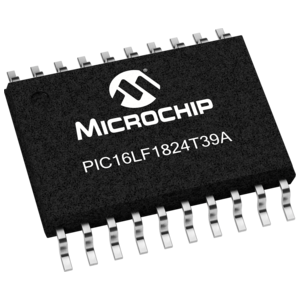

XLP PICmicro® with fully integrated RF Transmitter capable of operation in 310, 434, 868 and 915 MHz Bands

Special Microcontroller Features:

   1.8V-3.6V operation

   Self-Programmable under Software Control

   Power-on Reset (POR), Power-up Timer (PWRT)and Oscillator Start-up Timer (OST)

   Programmable Brown-out Reset (BOR)

   Extended Watchdog Timer (WDT)

   In-Circuit Serial Programming™ (ICSP™) viaTwo Pins

   In-Circuit Debug (ICD) via Two Pins

   Enhanced Low-Voltage Programming (LVP)

   Programmable Code Protection

   Power-Saving Sleep modeRF Transmitter:

   Fully-Integrated Transmitter

   FSK Operation up to 100 kbps

   OOK Operation up to 10 kbps

   Frequency-Agile Operation in 310, 433, 868 and915 MHz Bands

   +10 dBm or 0 dBm Configurable Output PowerExtreme Low-Power Management with XLP:

   Sleep mode: 175 nA @ 1.8V, typical, RF Sleep

   Watchdog Timer: 200 nA @ 1.8V, typical

   Timer1 Oscillator: 650 nA @ 32 kHz, 1.8V, typical

   Operating Current: 48 µA/MHz @ 1.8V RF Sleep, typical- 9 mA @ 1 MHz, 1.8V, RF on at 0 dBm, typical- 16.5 mA @ 1 MHz, 1.8V, RF on at +10 dBm, typical
