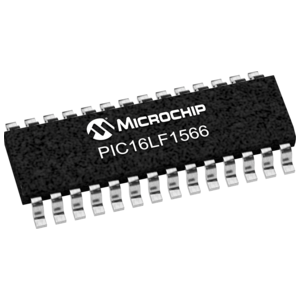

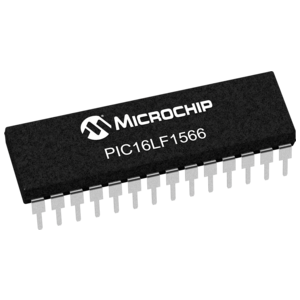

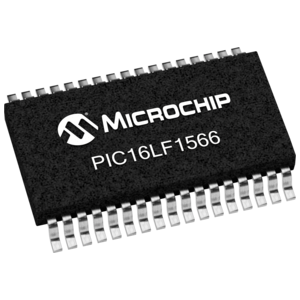

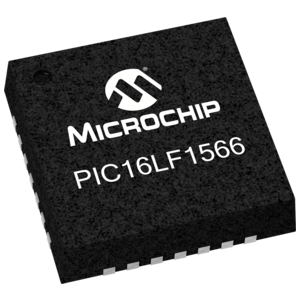

The PIC16LF1566 micro controller delivers unique on-chip features for the design of mTouch™ and general purpose applications in 28-pin count packages. Up to 23 analog channels connecting to two 10-bit ADCs with automated hardware CVD modules, two PWMs and multiple communication peripherals offer an excellent solution to implement capacitive sensing and other front-end sampling applications with minimal software overhead.

  Dual Analog to Digital Converter (ADC)

  23 Channel 10-bit ADC

   Advanced Controls for mTouch CVD (Capacitive Voltage Divider)

   Voltage Reference

  2 x MI2C, SPI

  UART

  High Endurance Flash Memory (HEF)

  128 B of Non-volatile Data Storage

  25mA Source/Sink current I/O

   32 MHz internal oscillator

   Low Power Brown Out Reset (LPBOR)

   Extended Watchdog Timer (WDT)

  In-Circuit Debug

   Operating Voltage : 1.8V – 3.6V
