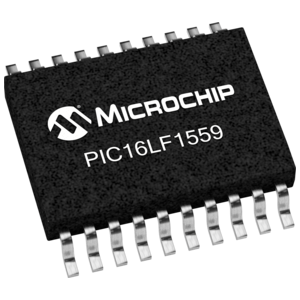

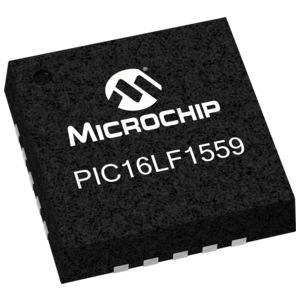

The PIC16LF1559 micro controller delivers unique on-chip features for the design of mTouch™ and general purpose applications in 20-pin count packages. Up to 17 analog channels connecting to two 10-bit ADCs with automated hardware CVD modules, two PWMs and multiple communication peripherals offer an excellent solution to implement capacitive sensing and other front-end sampling applications with minimal software overhead.

  Dual Analog to Digital Converter (ADC)

  17 Channel 10-bit ADC

   Advanced Controls for mTouch CVD (Capacitive Voltage Divider)

   Voltage Reference

   MI2C, SPI and UART

  High Endurance Flash Memory (HEF)

  128 B of Non-volatile Data Storage

  25mA Source/Sink current I/O

   32 MHz internal oscillator

   Low Power Brown Out Reset (LPBOR)

   Extended Watchdog Timer (WDT)

  In-Circuit Debug

   Operating Voltage : 1.8V – 3.6V

双模数转换器（ADC）

17通道10位模数转换器

用于McTou-CVD（电容分压器）的先进控制

基准电压源

MI2C、SPI和UART

高耐久性闪存（HEF）

128非易失性数据存储

25Ma源/汇电流I/O

32兆赫内部振荡器

Low Power Brown输出重置（LPBOR）

扩展看门狗定时器（WDT）

电路内调试

工作电压：1.8V～3.6V
