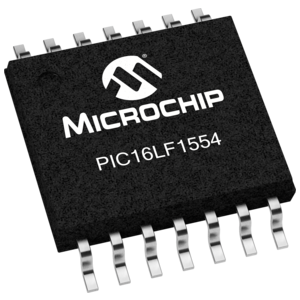

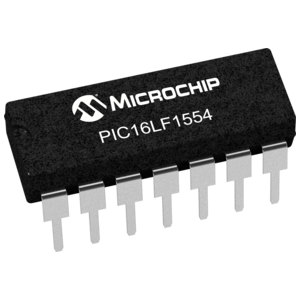

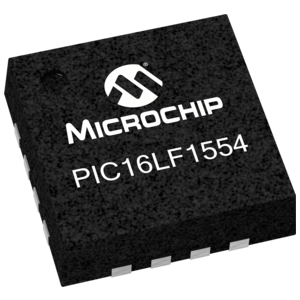

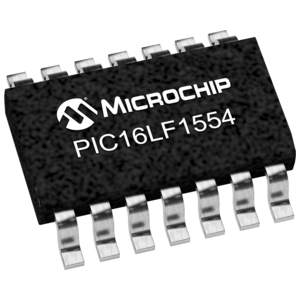

The PIC16LF1554 micro controller delivers unique on-chip features for the design of mTouch™ and general purpose applications in 14-pin count packages. Up to 11 analog channels connecting to two 10-bit ADCs with automated hardware CVD modules, two PWMs and multiple communication peripherals offer an excellent solution to implement capacitive sensing and other front-end sampling applications with minimal software overhead.

  Dual Analog to 10-bit Digital Converter (ADC )

  12 Channel 10-bit  ADC

   Advanced Controls for mTouch CVD (Capacitive Voltage Divider)

   Voltage Reference

   MI2C, SPI, UART

  2 PWMs

  High Endurance Flash Memory (HEF)

  128 B of Non-volatile Data Storage

  25mA Source/Sink current I/O

  32 MHz internal oscillator

  Low Power Brown Out Reset (LPBOR)

  Extended Watchdog Timer (WDT)

  In-Circuit Debug

  Operating Voltage : 1.8V – 3.6V
