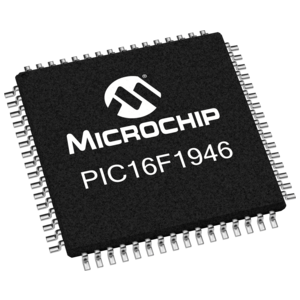

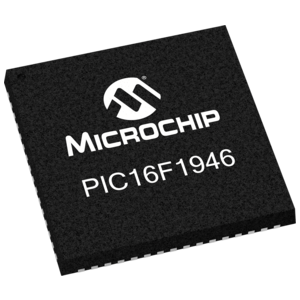

This versatile 64-pin MCU is also a member of Microchip's extreme low power microcontroller family featuring nanoWatt XLP technology

  Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels

  Flash Program Memory with self read/write capability

  184 LCD segment drive support

  Internal 32MHz oscillator

  Integrated Capacitive mTouch Sensing Module

  Integrated Temperature Indicator

  2xMI2C, 2xSPI, 2xEUSART w/auto baud

  3 ECCP & 2 CCP (Enhanced/Capture Compare PWM)

  Comparators with selectable Voltage Reference

  17 Channel 10b ADC with Voltage Reference

  25mA Source/Sink current I/O

  Four 8-bit Timers (TMR0/TMR2/TMR4/TMR6)

  One 16-bit Timer (TMR1)

  Extended Watchdog Timer (EWDT)

  Enhanced Power-On/Off-Reset

  Brown-Out Reset (BOR)

  In Circuit Serial Programming (ICSP)

  Wide Operating Voltage (1.8V – 5.5V)

  Low Power PIC16LF1946 variant (1.8V – 3.6V)
