PIC16(L)F1885X/7X microcontrollers feature Analog, Core Independent Peripherals and communication peripherals, combined with eXtreme Low Power (XLP) for a wide range of general purpose and low-power applications. The family will feature the CRC/SCAN, HLT and Windowed WDT to support customers looking to add safety to their application. Additionally, this family includes up to 56 KB of Flash memory, along with a 10-bit ADC with Computation (ADC2) for automated signal analysis to reduce the complexity of the application.

Demonstration Platform
Internet of Things Sensor Badge with interactive control via motion, multiple sensors, RGB LEDs and bluetooth communication.
www.microchip.com/iotsensorbadge

  Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels

  Adjustable Internal Oscillator (1-32MHz)

  2 x 10-bit PWMs

  5 x Capture, Compare, PWM (CCP)

  Complementary Waveform Generator (CWG)

  Numerically Controlled Oscillator (NCO)

  4 x Configurable Logic Controller (CLC)

  10-bit ADC with Computation (ADC2)

  5-bit Digital to Analog Converter (DAC)

  Data Signal Modulator (DSM)

  Zero Cross Detect (ZCD)

  Cyclical Redundancy Check (CRC/SCAN)

  Windowed Watchdog Timer (WWDT)

  Peripheral Pin Select (PPS)

  Enhanced Power-On/Off-Reset

  Low-Power Brown-Out Reset (LPBOR)

  Programmable Brown-Out Reset (BOR)

  In Circuit Serial Programming (ICSP)

  PIC16LF18854 (1.8V – 3.6V)

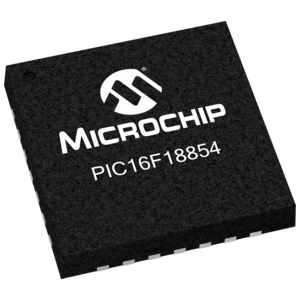

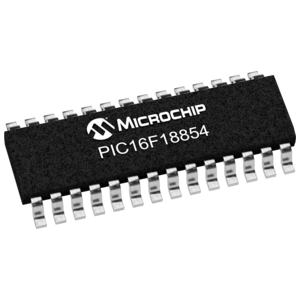

  PIC16F18854 (2.3V – 5.5V)
