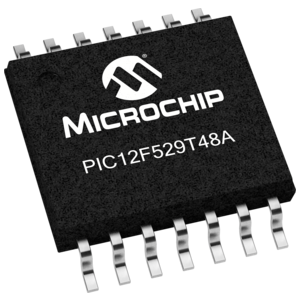

PIC12F529T48A
N/A
制造商:
产品信息
Please consider this device
The PIC12F529T48A is not recommended for new designs. As an alternative, we recommend the .
PIC micro® with fully integrated RF Transmitter capable of operation in 418, 433 and 868 MHz Bands
8 MHz Precision Internal Oscillator
In-Circuit Serial Programming™ (ICSP™)
Power-on Reset (POR)
Device Reset Timer (DRT)
Watchdog Timer (WDT) with Dedicated On-Chip RC Oscillator for Reliable Operation
Programmable Code Protection
Multiplexed MCLR Input Pin
Internal Weak Pull-ups on I/O Pins
Power-Saving Sleep mode
Wake-up from Sleep on Pin Change
Selectable Oscillator Options:
INTRC: 4 MHz or 8 MHz precision internal RC oscillator
EXTRC: External low-cost RC oscillator
XT: Standard crystal/resonator
LP: Power-saving, low-frequency crystal
RF Transmitter:Fully Integrated Transmitter
FSK Operation up to 100 kbps
OOK Operation up to 10 kbps
Operation in 418, 434 and 868 MHz Bands:
8 Selectable center frequencies
Configurable Output Power: +10 dBm, 0 dBm
Low-Power Features/CMOS Technology:Standby Current:
250 nA @ 2.0V, RF sleep, typical
Operating Current:
170 µA @ 4 MHz, 2.0V, RF sleep, typical
9.17 mA @ 4 MHz, 2.0V, RF on at +0 dBm, typical
16.67 mA @ 4 MHz, 2.0V, RF on at +10 dBm, typical
