PIC12F1612

PIC16(L)F161X microcontrollers deliver on-chip features that are unique to the design for embedded control of small motors and general purpose applic

制造商:

产品信息

PIC16(L)F161X microcontrollers deliver on-chip features that are unique to the design for embedded control of small motors and general purpose applications in 8 and 14 pin count packages.   Features like 10-bit A/D, CCP, 24-bit SMT, Zero Cross Detection offer an excellent solution to variety of applications.  The product family also has a CRC and Windowed WDT to support safety critical end equipment in home appliances and other end markets.

  Flash Program Memory with self read/write capability

  Enhanced Mid-Range Core, Internal 32MHz oscillator

  2 x 24-bit Signal Measurement Timer (SMT)

  Analog Comparators

  2 x Capture-Compare-PWM (CCP)

  4 x 10-bit Analog-to-Digital Converter (ADC) with voltage reference

  Complementary Waveform Generator (CWG):

  Zero Cross Detection (ZCD)

  Windowed Watchdog Timer (WWDT)

  CRC:  16-bit with DMA

  Power-On Reset (POR), Brown-Out Reset (BOR)

  In Circuit Serial Programming (ICSP)

  Wide Operation Voltage Variant ‘F’ (2.3V – 5.5V)

  eXtreme Low Power (XLP) ‘LF’ Variant (1.8V – 3.6V)

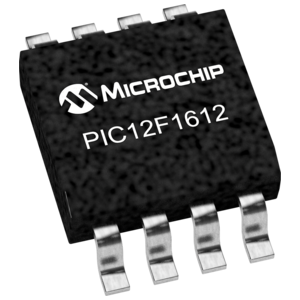

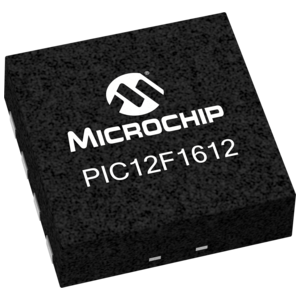

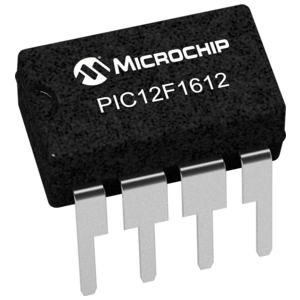

    PIC12F1612封装图
