PIC10F320

896 B Flash, 64 B RAM, 4 I/O, 8bit ADC, PWM, CLC, DDS, CWG,

制造商:

产品信息

The PIC10(L)F320 is the next generation of the PIC10F family that provides an increased feature set and increased performance over the existing PIC10F family that customers have requested. These new PIC10F32X variants are based on the standard mid-range architecture (vs. the baseline for the PIC10F2XX family) and provide interrupts, deeper hardware stack, PWM, emulated data EE, increased 16MHz internal oscillator, lower power, and 3 8-bit ADCs, as well as a few new integrated peripherals. These new integrated peripherals include a new Configurable Logic Cell (CLC) which allows the user to do simple Boolean functions – such as AND/OR/XOR logic functions and D/JK/SR state functions, a Numerically Controlled Oscillator (NCO) module which provides two functions; a PWM with a fixed 50% duty cycle and an increased frequency resolution function that lends itself well to applications such as ballast control, a Complementary Waveform Generator (CWG) which provides a complementary waveform to various inputs sources including the PWM, the CLC, or NCO, and finally an integrated temperature indicator for low cost temperature measurements. Debug Support
• External debug header (AC244045) is needed for debug support
• Debug and programming support is available via PICkit™ 3, and MPLAB® ICD 3
• For Debug Header information, please refer to
• For easy development, please see the- our newest Low Pin Count Development Board!

  Flash Program Memory with self read/write capability

  Mid-range core

  High Endurance Flash Memory (HEF)

  128 B of Non-volatile Data Storage

  35 Instructions, 8 Stack Levels, hardware interrupts

  Low Power Internal 16 MHz / 31kHz oscillator

  (2) stand-alone PWM’s

  (3) channel 8b ADC w/Vref

  Integrated Temperature Indicator

  Configurable Logic Cell (CLC)

  Complementary Waveform Generator (CWG)

  Numerically Controlled Oscillator (NCO)

  Two 8-bit Timer (TMR0/TMR2)

  Extended Watchdog Timer (EWDT)

  Brown-Out Reset (BOR)

  25mA Source/Sink current I/O

  In Circuit Serial Programming (ICSP)

  Wide Operation Voltage Variant ‘F’ (2.3V – 5.5V)

  eXtreme Low Power (XLP) ‘LF’ Variant (1.8V – 3.6V)

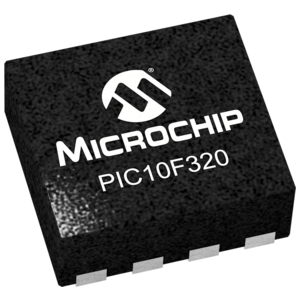

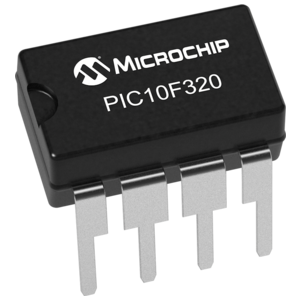

    PIC10F320封装图
