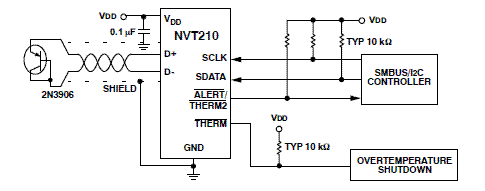

The NVT210 is a dual channel digital thermometer and undertemperature/overtemperature alarm, intended for use in automotive applications.A feature of the NVT210 is series resistance cancellation, where up to 1.5 kOhms; (typical) of resistance in series with the temperature monitoring diode can be automatically cancelled from the temperature result, allowing noise filtering.

• On-chip and remote temperature sensor
• 0.25°C resolution/1°C accuracy on remote channel
• 1°C resolution/1°C accuracy on local channel
• Automatically cancels up to 1.5 kΩ (typical) of resistance in series with remote diode to allow noise filtering
