This device is an 8 line EMI filter array for wireless applications.Greater than -25 dB attenuation is obtained at frequencies from 800 MHz to 5.0 GHz.The NUF8001MU has a cut-off frequency of 160 MHz and can be used in applications for data rates up to 60 MHz or 120 Mbps.This UDFN package is specifically designed to enhance EMI filtering for low-profile or slim design electronics especially where space and height is a premium.It also offers ESD protection-clamping transients from static discharges.ESD protection is provided across all capacitors.

• EMI Filtering and ESD Protection
• Integration of 40 Discrete Components
• Compliance with IEC61000-4-2 (Level 4): > 12 kV (Contact)

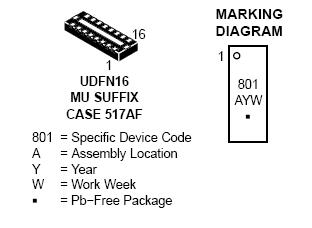

• UDFN Package, 1.2 x 3.5 mm, 0.4 mm Pitch
• Moisture Sensitivity Level 1
• ESD Ratings:Machine Model = C, Human Body Model = 3B
• This is a Pb-Free Device
