This device is a 6 line EMI filter array for wireless applications. Greater than -20 dB attenuation is obtained at frequencies from 800 MHz to 3.0 GHz. The NUF6410MN has a cut-off frequency of 250 MHz. This DFN package is specifically designed to enhance EMI filtering for low-profile or slim design electronics especially where space and height is a premium. It also offers ESD protection clamping transients from static discharges. ESD protection is provided across all capacitors.

• EMI Filtering and ESD Protection
• Integration of 30 Discrete Components

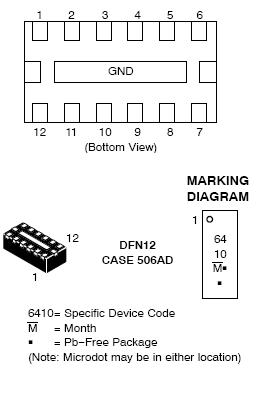

• DFN Package, 1.35 x 3.0 mm
• Moisture Sensitivity Level 1
• ESD Ratings: IEC61000-4-2 (Level 4), Machine Model = C, Human Body Model = 3B
• This is a Pb-Free Device
