元器件型号、描述、参数

NUF6406

 EMI Filter, 6-Channel, with Integrated ESD Protection

制造商：ON

中文资料及数据手册

在线购买

产品信息

This device is a 6 Line EMI Filter Array for wireless applications.Greater than -30 dB attentuation is obtained at frequencies from 800 MHz to 2.4 GHz.It also offers ESD Protection-Clamping Tranisients from static discharges.ESD Protection is provided across all capacitors.
  • EMI Filtering and ESD Protection
  • Integration of 30 Discrete Components
  • Compliance with IEC61000-4-2 (Level 4), > 8.0 kV (Contact)
  • DFN Package, 1.35 x 3.0 mm
  • Moisture Sensitivity Level 1
  • ESD Ratings:Machine Model=C and Human Body Model=3B
  • This is a Pb-Free Device

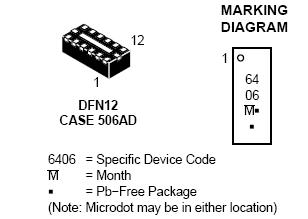

电路图、引脚图和封装图

    NUF6406电路图
