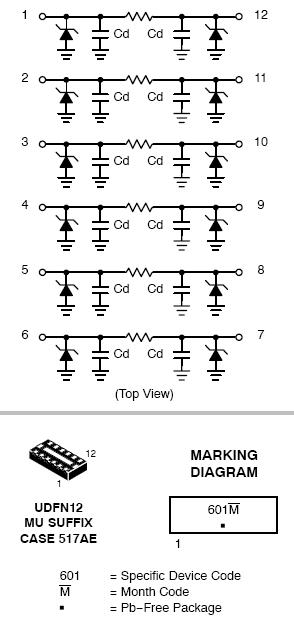

This device is a 6 line EMI filter array for wireless applications.Greater than -30 dB attenuation at frequencies from 800 MHz to 3.0 GHz.The NUF6001MU has a cut-off frequency of 120 MHz and can be used in applications for data rate up to 50 Mbps.This UDFN package is specifically designed to enhance EMI Filtering for low-profile or slim design electronics especially where space and height is a premium.It also offers ESD protection clamping transients from static discharges.ESD protection is provided across all capacitors

• EMI Filtering and ESD Protection
• Integration of 30 Discrete Components
• UDFN Package, 1.2 x 2.5 mm
• Moisture Sensitivity Level 1
• ESD Ratings: IEC61000-4-2 (Level 4)Machine Model = C Human Body Model = 3B
• This is a Pb-Free Device
