NUF4403MN

 EMI Filter, 4-Channel, with Integrated ESD Protection

制造商：ON

中文资料及数据手册

在线购买

产品信息

This device is a 4 line EMI Filter Array for wireless applications.The NUF4403MN provides greater than -35 dB attenuation at frequencies from 800 MHz to 2.2 GHz.It also offers ESD protection-clamping transients from static discharges.ESD protection is provided across all capacitors.
  • EMI Filtering and ESD Protection
  • Integration of 20 Discretes Components
  • Compliance with IEC61000-4-2 (Level 4)- 18kV Contact and 30 kV Air
  • DFN Package, 1.6 x 1.6 mm
  • Moisture Sensitivity Level 1
  • ESD Ratings:Machine Model = C and Human Body Model = 3B

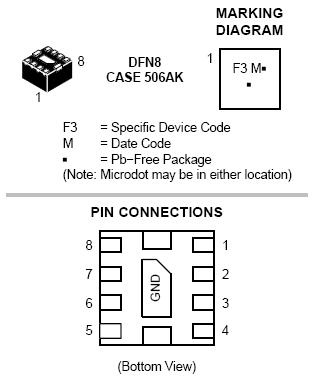

电路图、引脚图和封装图

    NUF4403MN电路图
